(75.300.01[02]) - DRIVE - CROSS OVER - 24 ROW, MODEL YEAR 2012

Запчасти Case IH 1250 (75.300.01[02]) - DRIVE - CROSS OVER - 24 ROW, MODEL YEAR 2012 (75) - SOIL PREPARATION

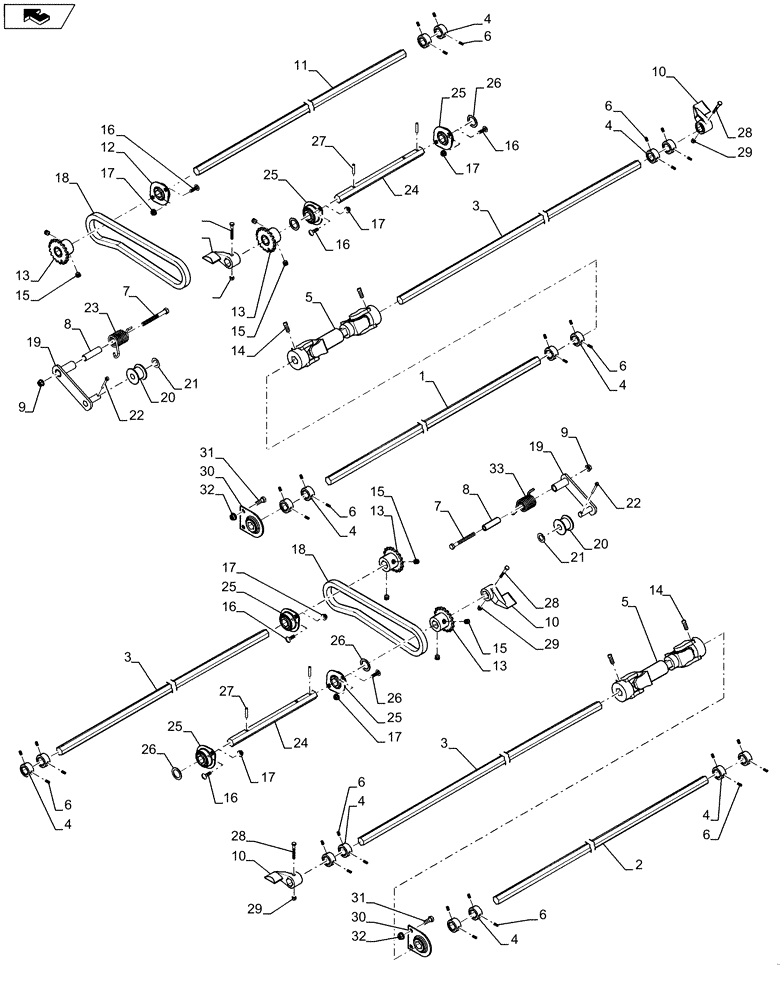

Схема запчастей Case IH 1250 - (75.300.01[02]) - DRIVE - CROSS OVER - 24 ROW, MODEL YEAR 2012 (75) - SOIL PREPARATION
16
24
17
13
1
7
20
17
29
24
21
15
3
26
9
15
19
18
17
8
26
15
28
12
6
4
6
19
15
29
13
7
6
4
6
17
4
25
8
14
10
4
5
6
10
32
16
20
4
11
31
18
32
3
16
6
28
28
4
4
13
25
14
4
27
6
22
26
16
25
17
21
33
9
30
home
6
5
29
25
16
31
13
26
27
22
10
2
3
30
25
17
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87462825

SHAFT

Input 7/8 Hex 22.2 X 5755 mm

1шт.

2

87462825

SHAFT

Input 7/8 Hex 22.2 X 5755 mm

1шт.

3

87462835

SHAFT

Input 7/8 Hex 22.2 X 1240 mm

3шт.

4

22224

COLLAR

Lock, 7/8 Hex Bore

16шт.

5

87444140

DRIVE SHAFT

Telescoping

2шт.

6

84523394

KEYWAY

32шт.

7

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

8

87505783

SLEEVE

Tensioner Pivot

2шт.

9

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

10

87539852

COUPLING

Cross Over Drive

4шт.

11

87462834

SHAFT

Input 7/8 Hex 22.2 X 1500 mm

1шт.

12

134158C92

BALL BEARING,22.5mm ID

7/8 Hex Bore

2шт.

13

103681A1

SPROCKET

18T, With 7/8 Hex Bore

4шт.

14

86542823

SET SCREW,Sq Hd, 3/8"-16 x 7/8", Cup Pt

4шт.

15

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

16

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

12шт.

17

145458

SERRATED NUT,5/16"-18 GR 5 ZND

12шт.

18

84393494

CHAIN

40 Roller

2шт.

19

87550916

TENSIONER

Chain

2шт.

20

1277726C1

ROLLER,48mm OD x 34mm L

Idler

2шт.

21

86624154

WASHER,0.66" ID x 1.12" OD x 0.05" Thk

2шт.

22

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

23

87505794

TORSION SPRING

idler, 4.7123mm dia. x 42.7 coil length, 8 coils, RH

1шт.

24

87557041

SHAFT

Hex, Cross Over 348 mm

2шт.

25

87566583

FLANGED BEARING,22.25mm ID

4шт.

26

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

4шт.

27

763441

PIN,1/4" x 1 1/4", Coiled

4шт.

28

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

29

20356

NUT,1/4"-20, GB

4шт.

30

102724A2

BALL BEARING,22.6mm ID

3шт.

31

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

32

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

33

87758366

TORSION SPRING

idler, 4.7123mm dia. x 42.7 coil length, 8 coils, LH

1шт.
