(35.116.05) - HYDRAULICS - CYLINDER 87603016, 3" X 8" SLAVE - 16 ROW WING WHEEL

Запчасти Case IH 1250 (35.116.05) - HYDRAULICS - CYLINDER 87603016, 3" X 8" SLAVE - 16 ROW WING WHEEL (35) - HYDRAULIC SYSTEMS

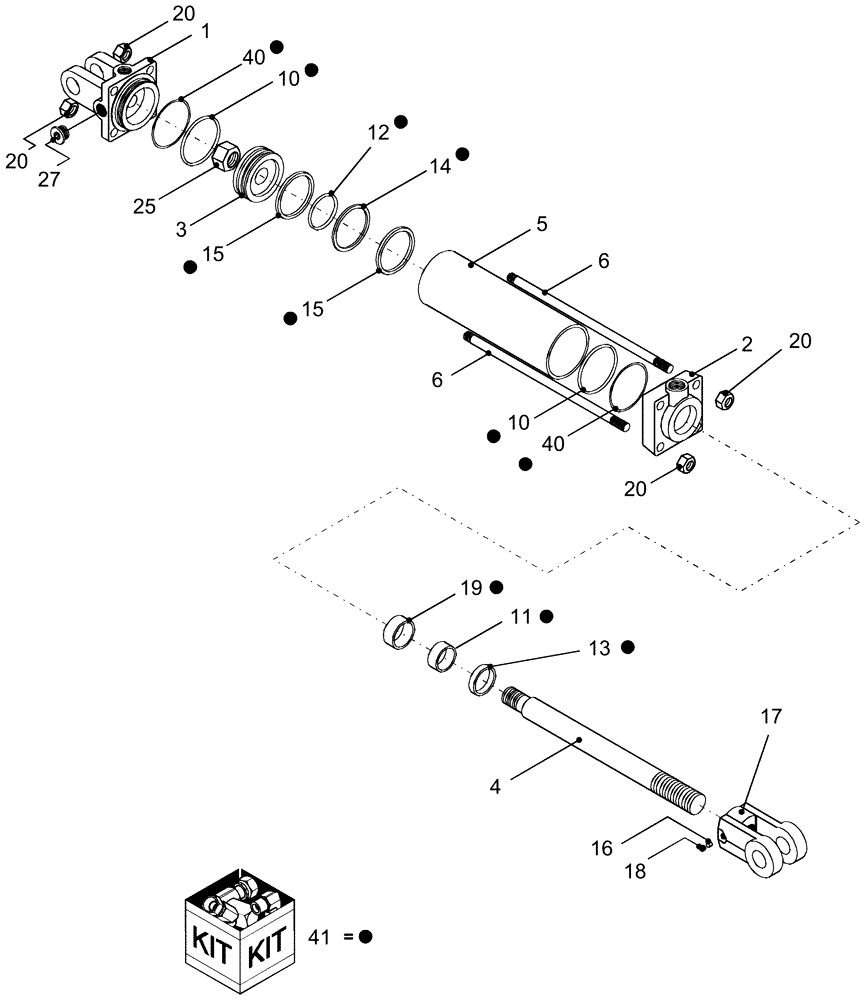

Схема запчастей Case IH 1250 - (35.116.05) - HYDRAULICS - CYLINDER 87603016, 3" X 8" SLAVE - 16 ROW WING WHEEL (35) - HYDRAULIC SYSTEMS
15
14
15
13
10
12
6
1
20
25
18
40
11
41
5
10
6
19
20
27
16
3
20
2
40
4
17
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87603016

CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3" x 8" slave

1шт.

1

87409445

HEAD

cylinder base 3" bore

1шт.

2

87635301

HEAD

3" bore for 1 1/4" shaft

1шт.

3

87635232

PISTON

3" bore

1шт.

4

87635294

ROD

1 1/4"

1шт.

6

87409688

TIE-ROD

1/2"-13 for 8" Monarch #492278

4шт.

17

87409387

CLEVIS,1 -1/4" - 12

cylinder 1" pin 1 1/4"-12 rod Monarch #492652

1шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

20

280431

NUT,1/2"-13, G5

8шт.

25

87314800

LOCK NUT

1"-14, GA

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

41

87409035

REPAIR KIT

hyd cylinder 3" Monarch with 1 1/4" rod

1шт.
