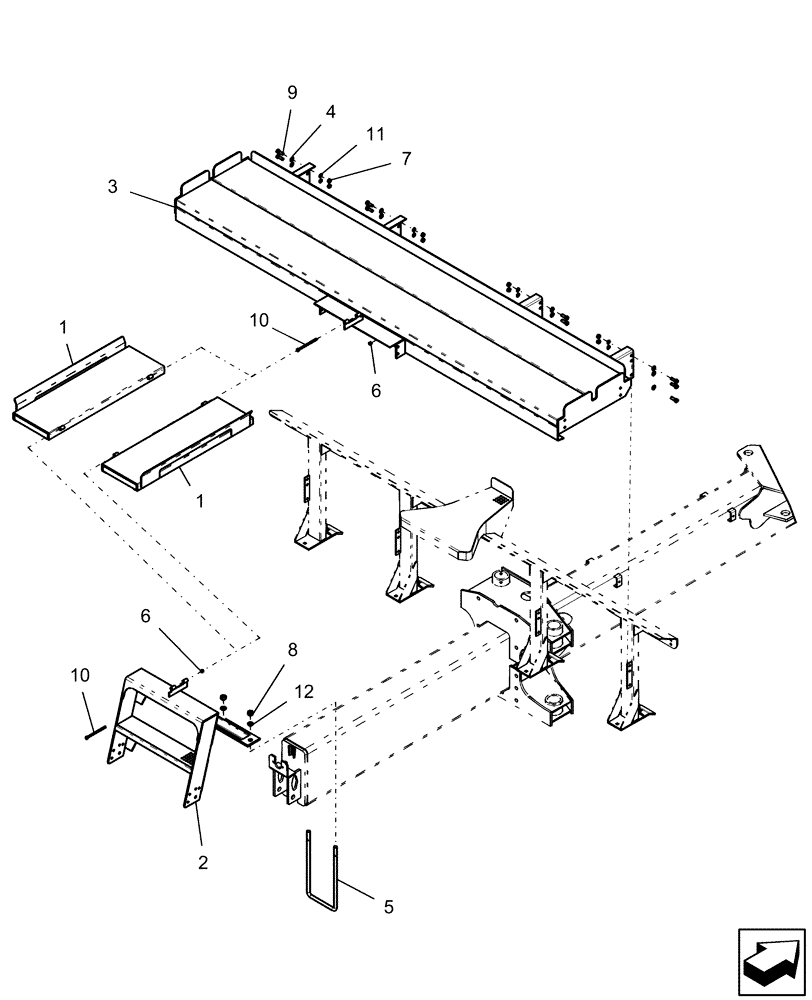

Запчасти Case IH 1250 (80.150.02[02]) - BULK FILL - PLATFORM - 24 ROW ASN Y9S007001 (80) - CROP STORAGE/UNLOADING

1

87567080

PLATFORM

rear folding

2шт.

2

87567086

MOUNTING PARTS

rear ladder support

1шт.

3

87567079

PLATFORM

main top

1шт.

4

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

12шт.

5

87503060

U-BOLT

us 3/4"-10 x 8.1 wide x 17.75 deep

1шт.

6

88902

NUT,3/8"-16

2шт.

7

280431

NUT,1/2"-13, G5

12шт.

8

86518194

NUT,3/4"-10, G8

2шт.

9

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

12шт.

10

280258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

12

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.
