(80.150.04) - BULK FILL - HAND RAIL - 24 ROW

Запчасти Case IH 1250 (80.150.04) - BULK FILL - HAND RAIL - 24 ROW (80) - CROP STORAGE/UNLOADING

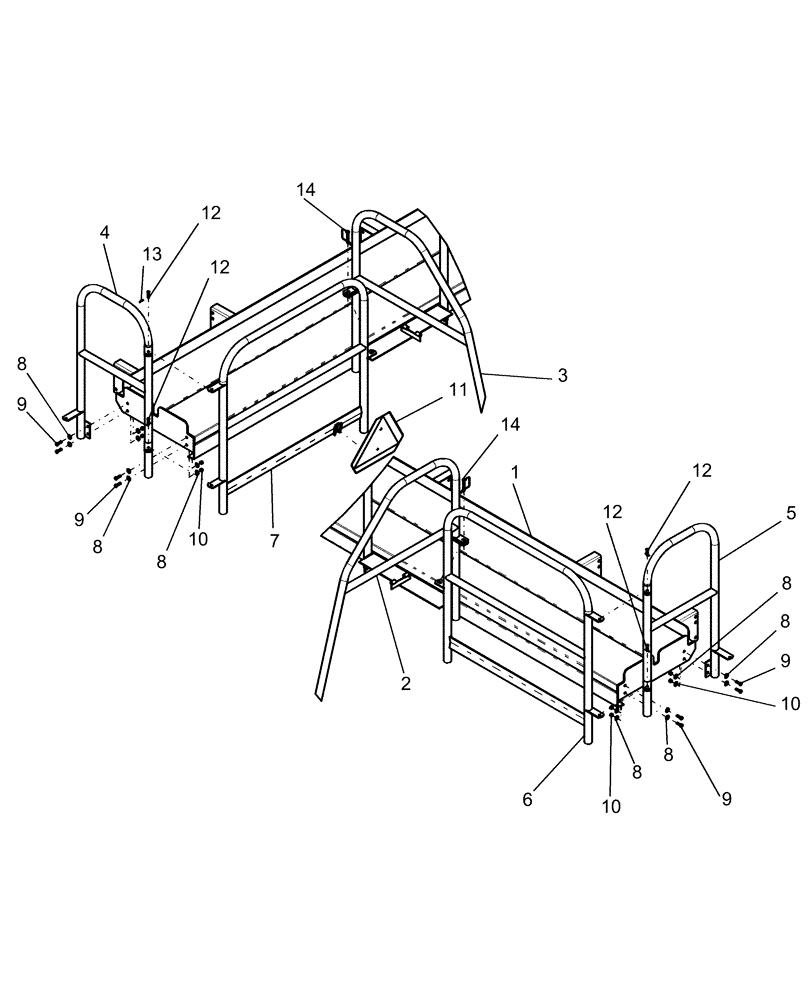

Схема запчастей Case IH 1250 - (80.150.04) - BULK FILL - HAND RAIL - 24 ROW (80) - CROP STORAGE/UNLOADING
10
8
5
1
6
8
10
9
11
7
14
8
9
8
12
13
2
8
10
12
8
3
14
12
12
9
4
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87567079

PLATFORM

main top

1шт.

2

87567087

HANDRAIL

rear platform RH

1шт.

3

87567088

HANDRAIL

rear platform LH

1шт.

4

87567085

HANDRAIL

platform RH

1шт.

5

87567083

HANDRAIL

platform LH

1шт.

6

87567084

HANDRAIL

rear platform RH

1шт.

7

87577515

HANDRAIL

rear platform LH

1шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

16шт.

9

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

8шт.

10

88902

NUT,3/8"-16

8шт.

11

311862A1

PLATE

assembly, slow moving vehicle

1шт.

12

439-5624

HEADED PIN,3/8" x 1 1/2"

4шт.

13

80756

COTTER PIN,1/8" x 3/4"

4шт.

14

87574044

PIN

safety with tab lock

2шт.
