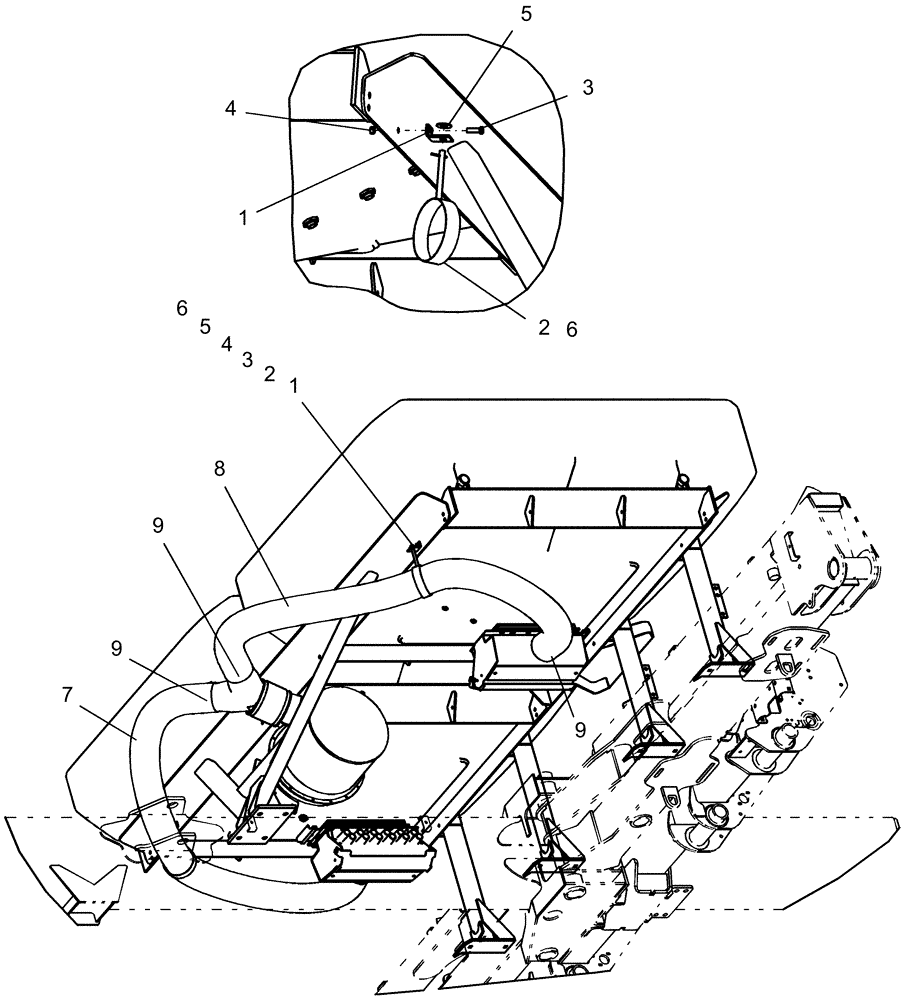

Запчасти Case IH 1250 (80.150.10) - BULK FILL - FAN HOSES - 24 ROW (80) - CROP STORAGE/UNLOADING

1

87583063

SUPPORT

bulk fill hose tab

2шт.

2

87583065

SUPPORT

bulk fill fan blower hose

2шт.

3

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

4

9628503

NUT,3/8"-16, G5

2шт.

5

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

6

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

2шт.

7

87584660

HOSE,127.00 mm ID x 2540.00 mm

Bulk Fill PVC Clear Spiral

1шт.

8

87584660

HOSE,127.00 mm ID x 2540.00 mm

Bulk Fill PVC Clear Spiral

1шт.

9

87019670

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

4шт.
