(80.150.13) - BULK FILL - TANK AND FRAME - 16 ROW BSN Y9S007001

Запчасти Case IH 1250 (80.150.13) - BULK FILL - TANK AND FRAME - 16 ROW BSN Y9S007001 (80) - CROP STORAGE/UNLOADING

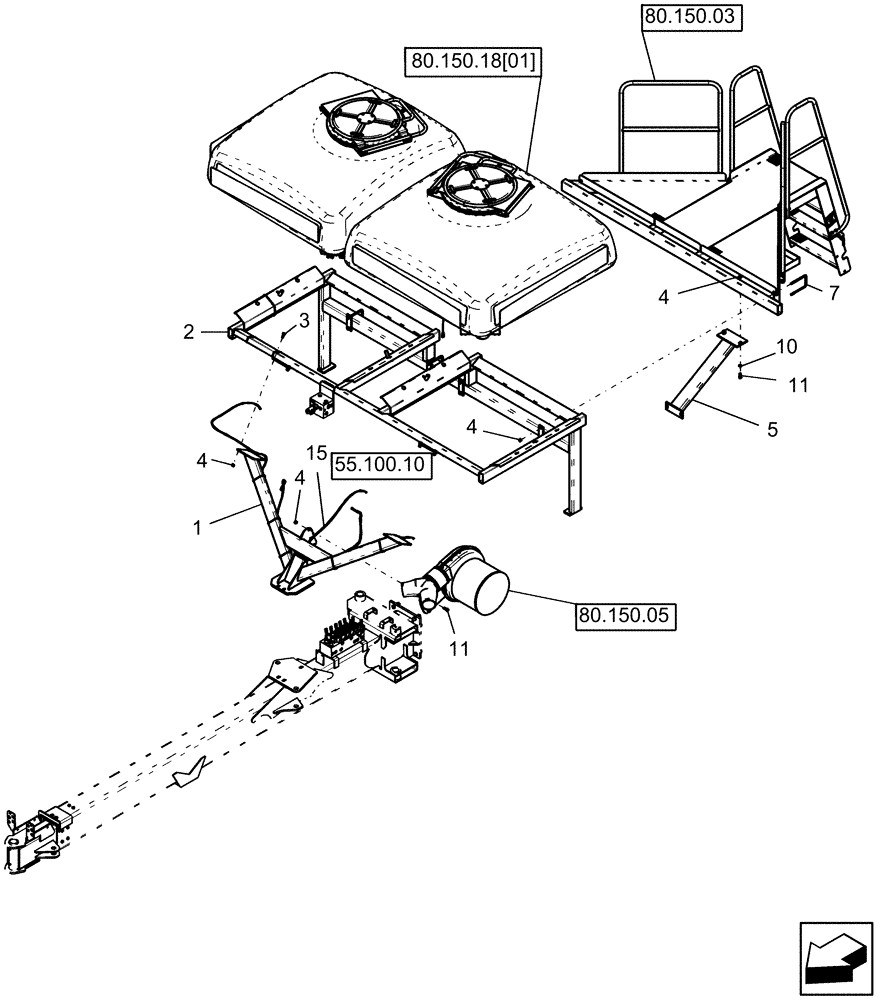

Схема запчастей Case IH 1250 - (80.150.13) - BULK FILL - TANK AND FRAME - 16 ROW BSN Y9S007001 (80) - CROP STORAGE/UNLOADING
55.100.10
2
3
4
15
11
4
4
4
80.150.05
80.150.03
10
1
7
5
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87652471

SUPPORT

bulk fill

1шт.

2

87648120

SUPPORT

bulk fill tanks

1шт.

3

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

8шт.

4

87333862

NUT

1/2"-13, GB

21шт.

5

87648119

SUPPORT

platform

1шт.

7

9189

U-BOLT

us 1/2"-13 4 1/8" wide x 7" deep, G5

4шт.

10

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

11

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

5шт.

15

87575102

HARNESS

bulk fill, ISOBUS

1шт.
