(35.116.11) - HYDRAULICS - CYLINDER 87702605, 4 1/2" X 23 5/8" - 12 ROW AND 16 ROW FOLD

Запчасти Case IH 1250 (35.116.11) - HYDRAULICS - CYLINDER 87702605, 4 1/2" X 23 5/8" - 12 ROW AND 16 ROW FOLD (35) - HYDRAULIC SYSTEMS

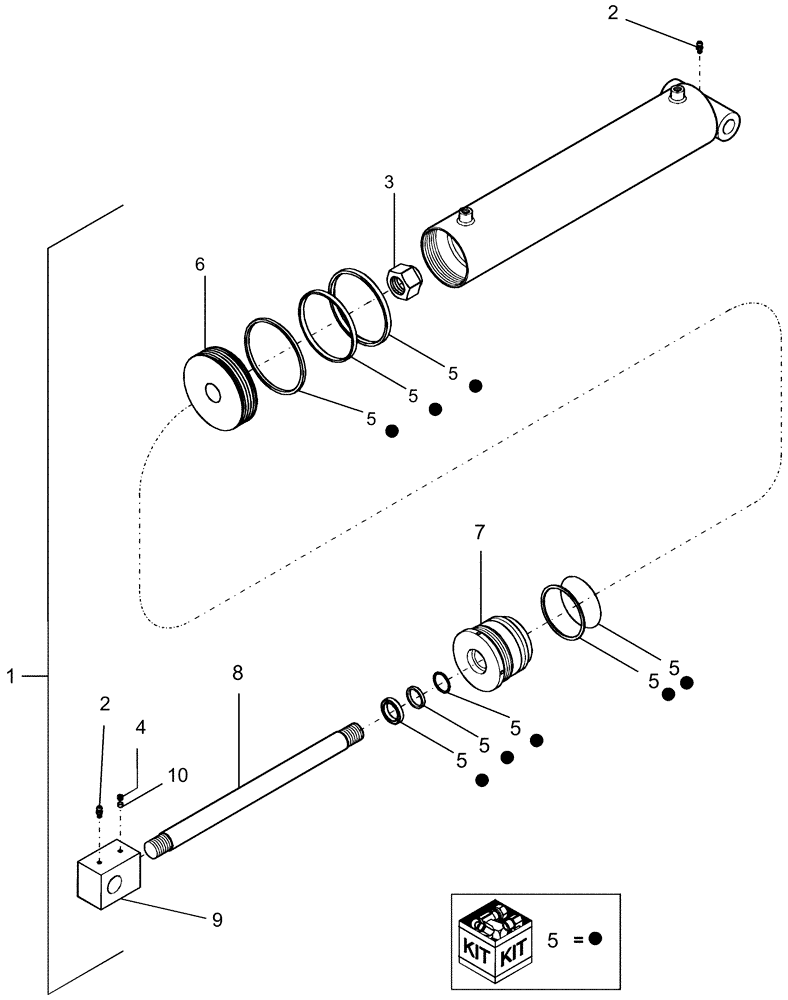

Схема запчастей Case IH 1250 - (35.116.11) - HYDRAULICS - CYLINDER 87702605, 4 1/2" X 23 5/8" - 12 ROW AND 16 ROW FOLD (35) - HYDRAULIC SYSTEMS
5
5
10
8
5
5
3
5
7
5
5
6
1
2
2
5
9
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87702605

CYLINDER,Double Acting, 50.8mm Rod, 574.8mm Stroke

4 1/2" x 23 5/8"

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

2шт.

3

232-46324

LOCK NUT,1 1/2"-12, GC

1шт.

4

485-13810

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

1шт.

5

87633996

SEAL KIT

4 1/2" bore, 2" rod

1шт.

6

87634002

PISTON

4 1/2"

1шт.

7

87634003

HEAD

4 1/2"

1шт.

8

87705454

ROD

2"

1шт.

9

87705456

END

rod, adjustable

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.
