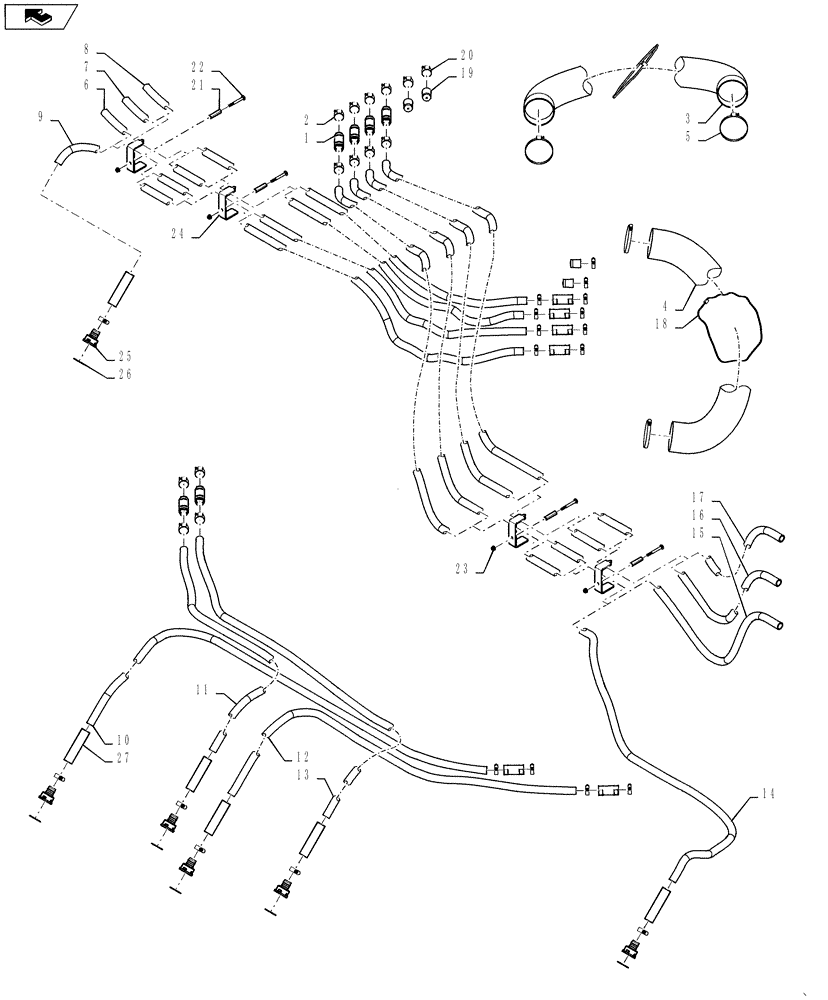

Запчасти Case IH 1250 (80.150.30[03]) - BULK FILL - HOSES - 12 ROW, CENTER, MODEL YEAR 2011 (80) - CROP STORAGE/UNLOADING

1

87482203

ADAPTER

Seed Hose 1.25" OD

12шт.

2

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

30шт.

3

306385A1

HOSE

Air, Bulk, 5" ID, Cut To 62"

1шт.

4

306385A1

HOSE

Air, Bulk, 5" ID, Cut To 62"

1шт.

5

87019670

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

4шт.

6

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 4080 mm

1шт.

7

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 4080 mm

1шт.

8

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 4080 mm

1шт.

9

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 3500 mm

1шт.

10

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 2900 mm

1шт.

11

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 2290 mm

1шт.

12

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 2290 mm

1шт.

13

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 2900 mm

1шт.

14

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 3300 mm

1шт.

15

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 4080 mm

1шт.

16

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 4080 mm

1шт.

17

87483976

HOSE

1" x 100', Bulk, PVC Black, Cut To 4080 mm

1шт.

18

87502039

CABLE TIE

CABLE STRAP Tie Strap, Medium

2шт.

19

2688

CAP

4шт.

20

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

4шт.

21

87480076

SPACER

Hose Clamp

4шт.

22

280348

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3 1/2", Gr 5

4шт.

23

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

24

84225237

BRACKET

Hose Clamp

4шт.

25

84329267

COUPLING

1.25" Seed Hose

6шт.

26

84372879

O-RING

Seed Hose Coupling

6шт.

27

87483977

HOSE

1.25" x 100', Bulk, PVC Black, Cut To 160 mm

6шт.
