(90.108.03) - DECALS - 24 ROW

Запчасти Case IH 1250 (90.108.03) - DECALS - 24 ROW (90) - PLATFORM, CAB, BODYWORK AND DECALS

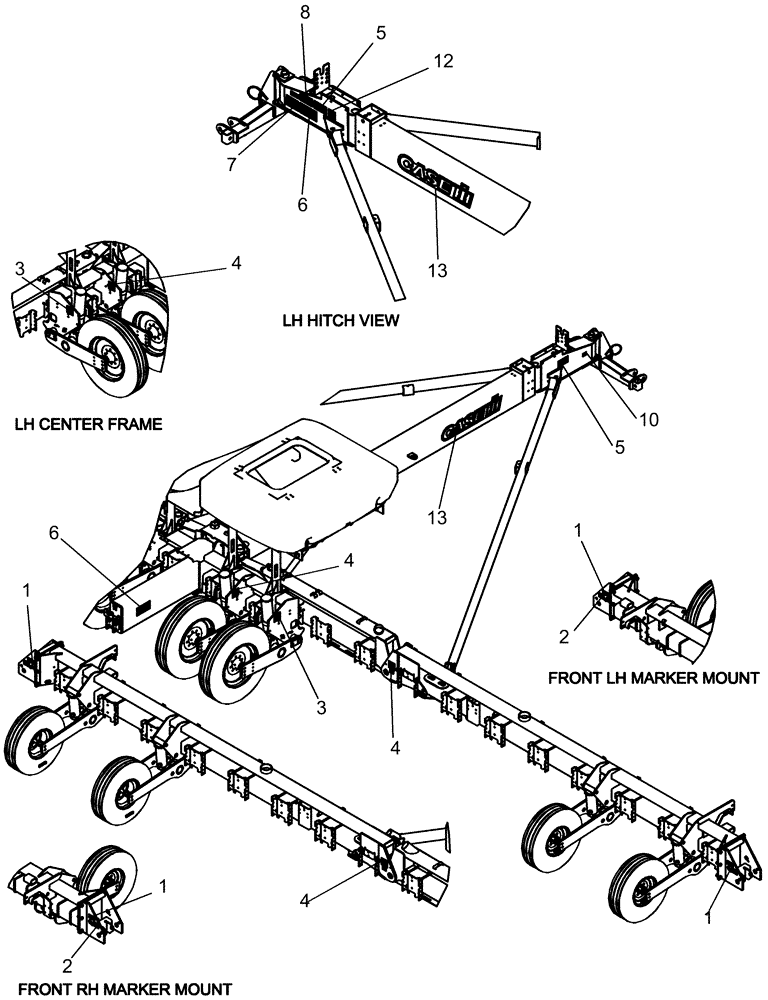

Схема запчастей Case IH 1250 - (90.108.03) - DECALS - 24 ROW (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
12
13
2
10
2
5
3
1
13
4
6
4
1
4
6
8
1
5
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

416611A1

DECAL

danger electrical electrocution hazard

4шт.

1

87527149

DECAL

danger electrical electrocution hazard French

4шт.

2

87588039

DECAL

marker crush hazard

4шт.

3

87588036

DECAL

transport crush hazard

2шт.

4

87588037

DECAL

field crush hazard

4шт.

5

87588040

DECAL

pinch hazard

2шт.

6

87588041

DECAL

tractor speed control

2шт.

7

86622073

WARNING DECAL

sign

1шт.

8

87588038

DECAL

tipping hazard

1шт.

10

87588042

DECAL

hidden grease fittings

3шт.

12

333088A1

DECAL

protective clothing

1шт.

13

87556588

DECAL

Case IH logo, Years: -01-MAY-07

2шт.

13

87650696

DECAL

CIH logo 1054 mm x 249 mm vinyl, Start Year: 01-JUN-07

2шт.

14

144370A1

WARNING DECAL

Stay Clear

1шт.

Not Shown

1шт.
