(35.138.16[02]) - HYDRAULICS - ASSEMBLY, VALVE MARKER 87463248 ASN Y9S007001

Запчасти Case IH 1250 (35.138.16[02]) - HYDRAULICS - ASSEMBLY, VALVE MARKER 87463248 ASN Y9S007001 (35) - HYDRAULIC SYSTEMS

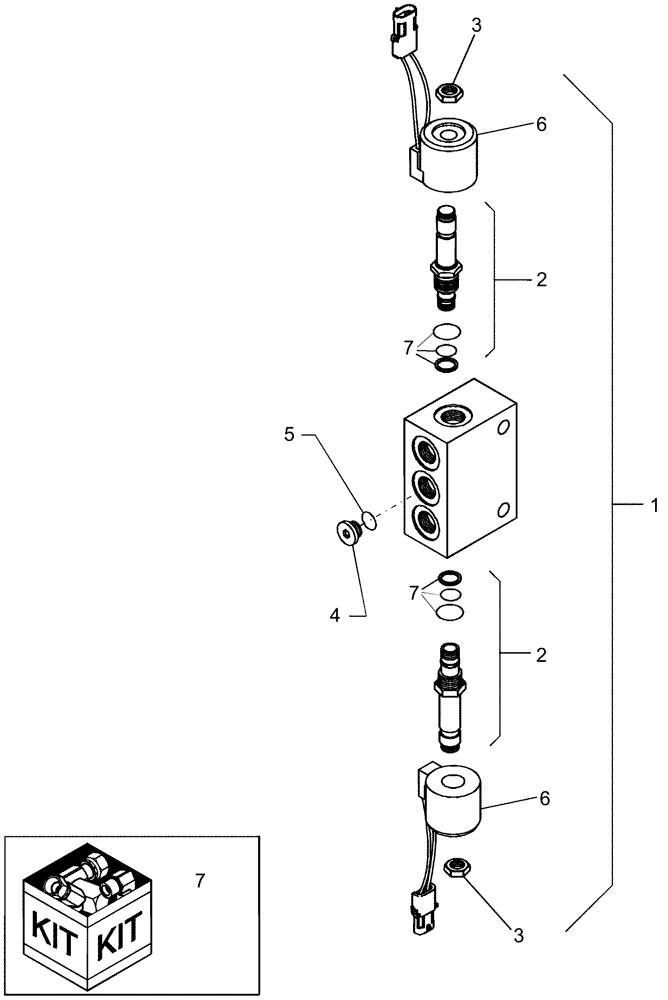

Схема запчастей Case IH 1250 - (35.138.16[02]) - HYDRAULICS - ASSEMBLY, VALVE MARKER 87463248 ASN Y9S007001 (35) - HYDRAULIC SYSTEMS
2
6
7
7
2
7
4
3
6
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87463248

VALVE

assembly, marker

1шт.

2

87436627

VALVE

assembly 2 way cartridge

2шт.

3

73113425

NUT

1/2"-20, Thin

2шт.

4

9625178

PLUG,9/16" - 18 ORB

1шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

1340843C1

SOLENOID,12V

solenoid with Packard

2шт.

7

86508168

SEAL KIT

Relief Valve

2шт.

Выбрано товаров: 0
