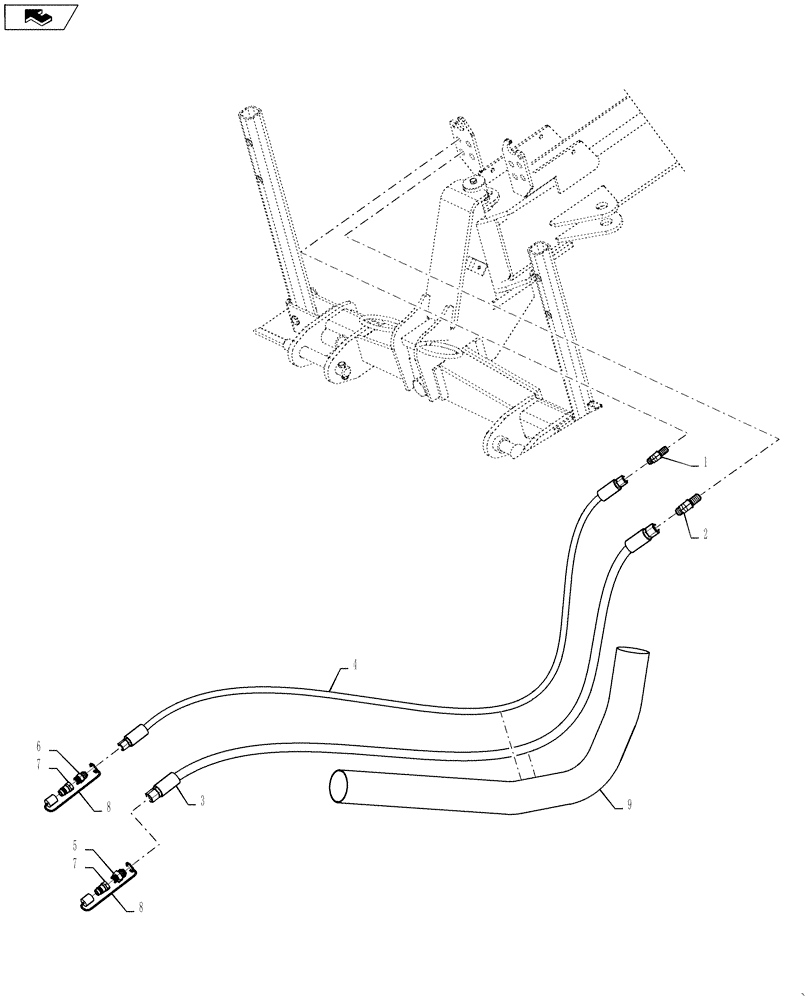

Запчасти Case IH 1250 (35.138.25) - HYDRAULICS - TRACTOR HOSE AND COUPLERS (35) - HYDRAULIC SYSTEMS

1

86513098

45 ELBOW,45 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

2

86513099

FITTING

45º Bulkhead, 37º Flare, -12

1шт.

3

87454316

HYDRAULIC HOSE,19mm ID x 2040mm L, SAE 100R17

3/4" x 80" fl

1шт.

4

84270930

HYDRAULIC HOSE,16mm ID x 2083mm L, SAE 100R17

5/8" x 82" fl

1шт.

5

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1шт.

6

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

7

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

2шт.

8

333722A1

CAP

female quick coupler green

2шт.

9

87106154

SLEEVE

Hydraulic Hoses

1шт.
