(35.220.03) - HYDRAULICS - DRAWBAR HITCH TRACTOR HOSES, LIFT AND FOLD

Запчасти Case IH 1250 (35.220.03) - HYDRAULICS - DRAWBAR HITCH TRACTOR HOSES, LIFT AND FOLD (35) - HYDRAULIC SYSTEMS

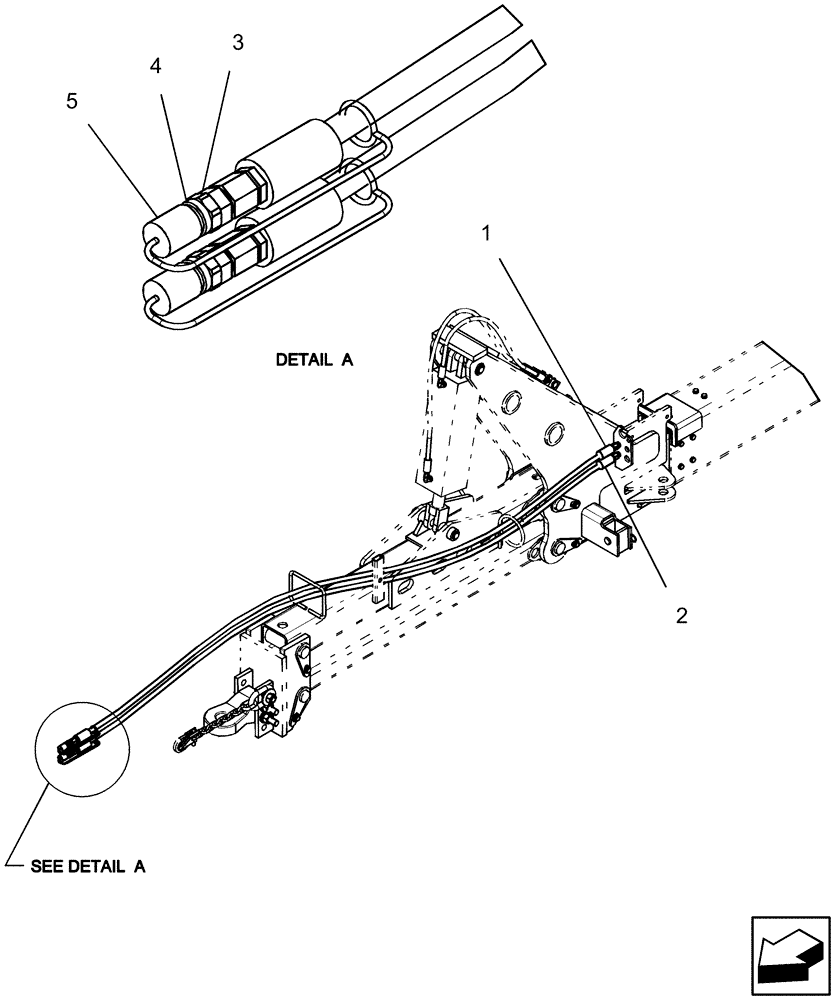

Схема запчастей Case IH 1250 - (35.220.03) - HYDRAULICS - DRAWBAR HITCH TRACTOR HOSES, LIFT AND FOLD (35) - HYDRAULIC SYSTEMS
3
4
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87488337

HYDRAULIC HOSE,16mm ID x 3200mm L, SAE 100R17

16 mm x 3200 mm fl

1шт.

2

87488337

HYDRAULIC HOSE,16mm ID x 3200mm L, SAE 100R17

16 mm x 3200 mm fl

1шт.

3

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

2шт.

4

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

2шт.

5

333721A1

CAP

female quick coupler red

2шт.
