(35.580.03) - HYDRAULICS - WING WHEEL - 12 ROW

Запчасти Case IH 1250 (35.580.03) - HYDRAULICS - WING WHEEL - 12 ROW (35) - HYDRAULIC SYSTEMS

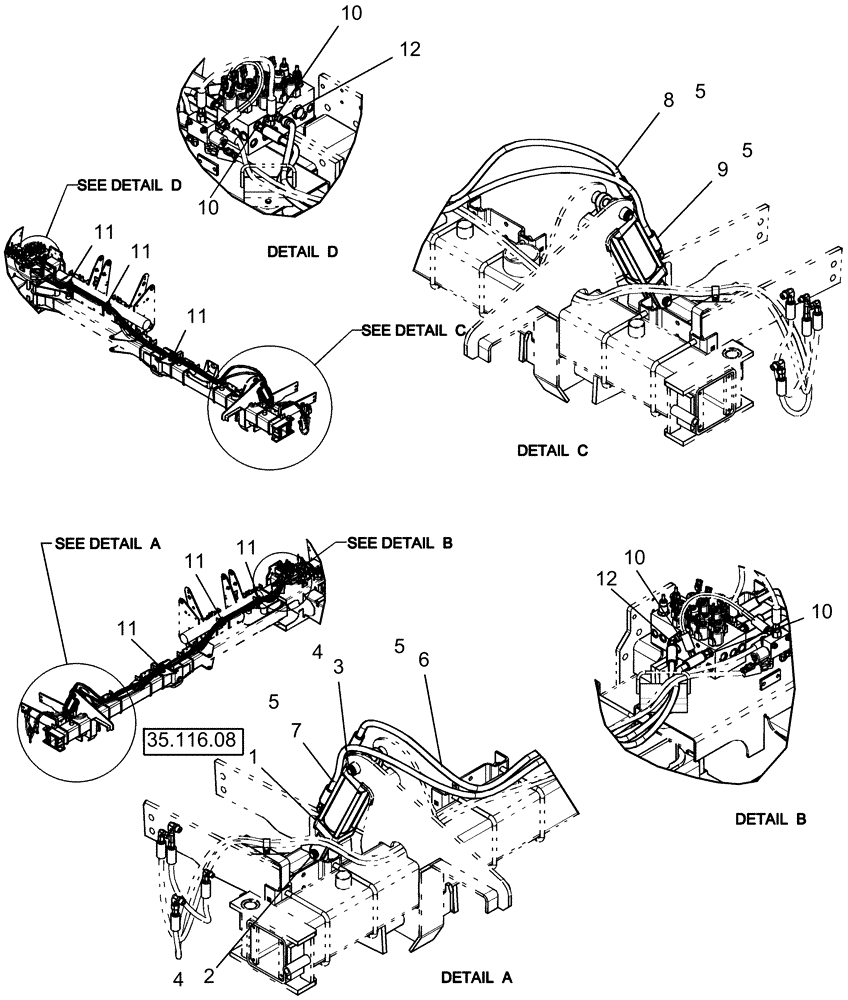

Схема запчастей Case IH 1250 - (35.580.03) - HYDRAULICS - WING WHEEL - 12 ROW (35) - HYDRAULIC SYSTEMS
10
4
5
11
7
11
9
11
1
2
5
10
11
5
10
11
35.116.08
5
11
12
12
6
4
3
8
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87618014

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 203.2mm Stroke

4 1/4" x 8" slave

2шт.

2

87604817

PIN

25.4 mm x 79.2 mm ul

2шт.

3

87604818

PIN

25.4 mm x 139.4 mm ul

2шт.

4

87019495

SNAP RING,#98, Ext

8шт.

5

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

6

91204C1

HYDRAULIC HOSE,12.7mm ID x 4320mm L

1шт.

7

91158C1

HYDRAULIC HOSE,12.7mm ID x 4570mm L

1/2" x 180" fl

1шт.

8

91204C1

HYDRAULIC HOSE,12.7mm ID x 4320mm L

1шт.

9

91158C1

HYDRAULIC HOSE,12.7mm ID x 4570mm L

1/2" x 180" fl

1шт.

10

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

37FL x ORB -08

4шт.

11

87482623

CLAMP

agriculture large

6шт.

12

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.
