(39.100.26) - MARKER - SUPPORT WITH PADS

Запчасти Case IH 1260 (39.100.26) - MARKER - SUPPORT WITH PADS (39) - FRAMES AND BALLASTING

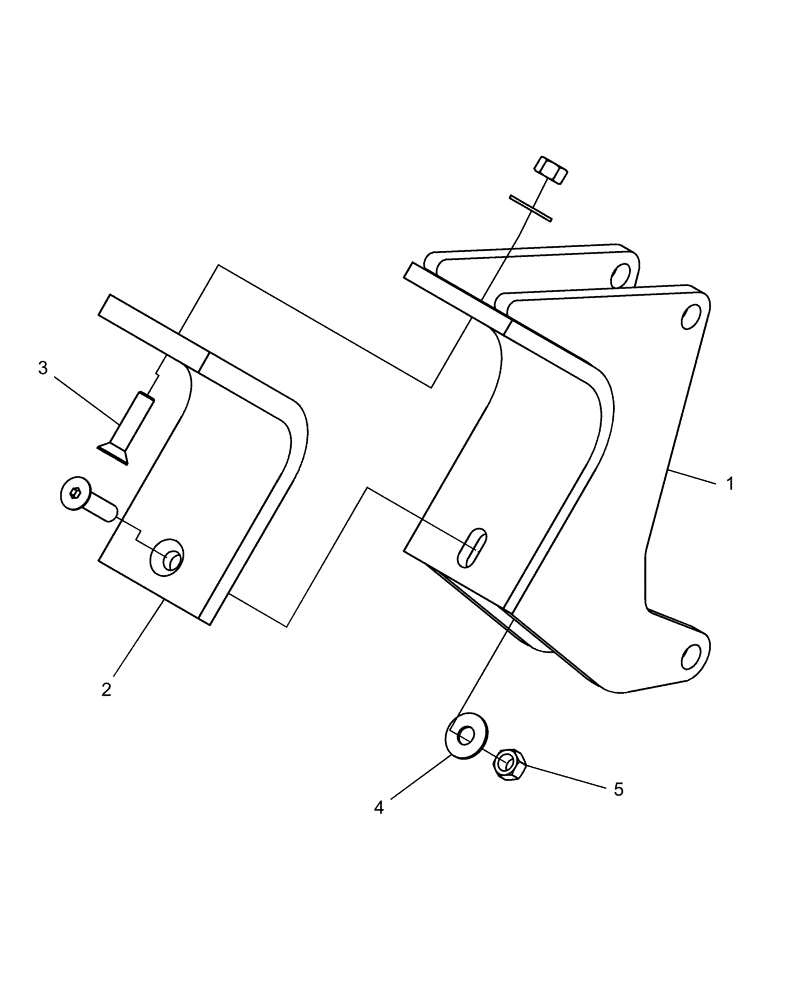

Схема запчастей Case IH 1260 - (39.100.26) - MARKER - SUPPORT WITH PADS (39) - FRAMES AND BALLASTING
5
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87694005

SUPPORT

1шт.

1

84260250

SUPPORT

1шт.

Not Shown

1шт.

2

87694091

PAD

Marker Stop

1шт.

3

9920

SCREW,3/8" - 16 x 1.5, Gr 5

3/8" x 1 1/2" GR5 countersunk

2шт.

4

87613182

WASHER,0.41" ID x 1" OD x 0.06" Thk

.406 x 1 x .063

2шт.

5

9628503

NUT,3/8"-16, G5

2шт.
