(39.110.02) - FRAME - HITCH, SHORT SKID PLATES

Запчасти Case IH 1260 (39.110.02) - FRAME - HITCH, SHORT SKID PLATES (39) - FRAMES AND BALLASTING

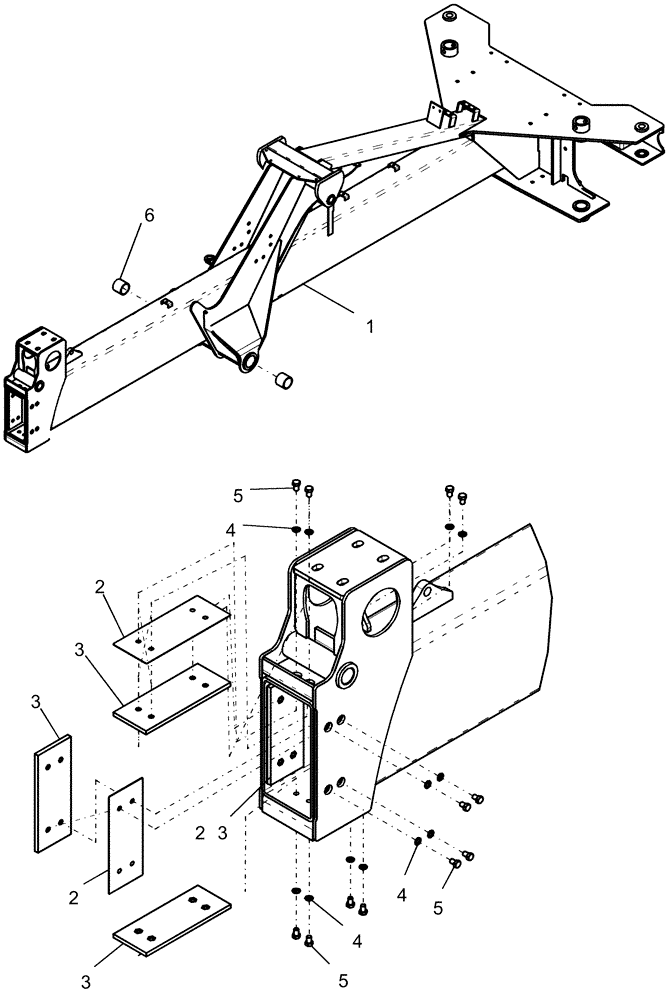

Схема запчастей Case IH 1260 - (39.110.02) - FRAME - HITCH, SHORT SKID PLATES (39) - FRAMES AND BALLASTING
5
5
2
2
4
5
3
3
4
3
2
1
3
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84205562

HITCH

Outer Short With Decal

1шт.

2

87757688

WEAR PAD

strip shim

3шт.

3

87757689

SLIDING PAD

skid assembly

4шт.

4

87016230

WASHER

17/32" x 7/8" x .071"

16шт.

5

86507009

BOLT

Hex, 1/2"-13 x 5/8", G5

8шт.

6

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

8шт.

7

87503180

BUSHING

polylube 3" x 3 1/2" x 3"

2шт.
