(44.100.01) - AXLE AND WHEELS - STANDARD WING WHEELS 30"

Запчасти Case IH 1260 (44.100.01) - AXLE AND WHEELS - STANDARD WING WHEELS 30" (44) - WHEELS

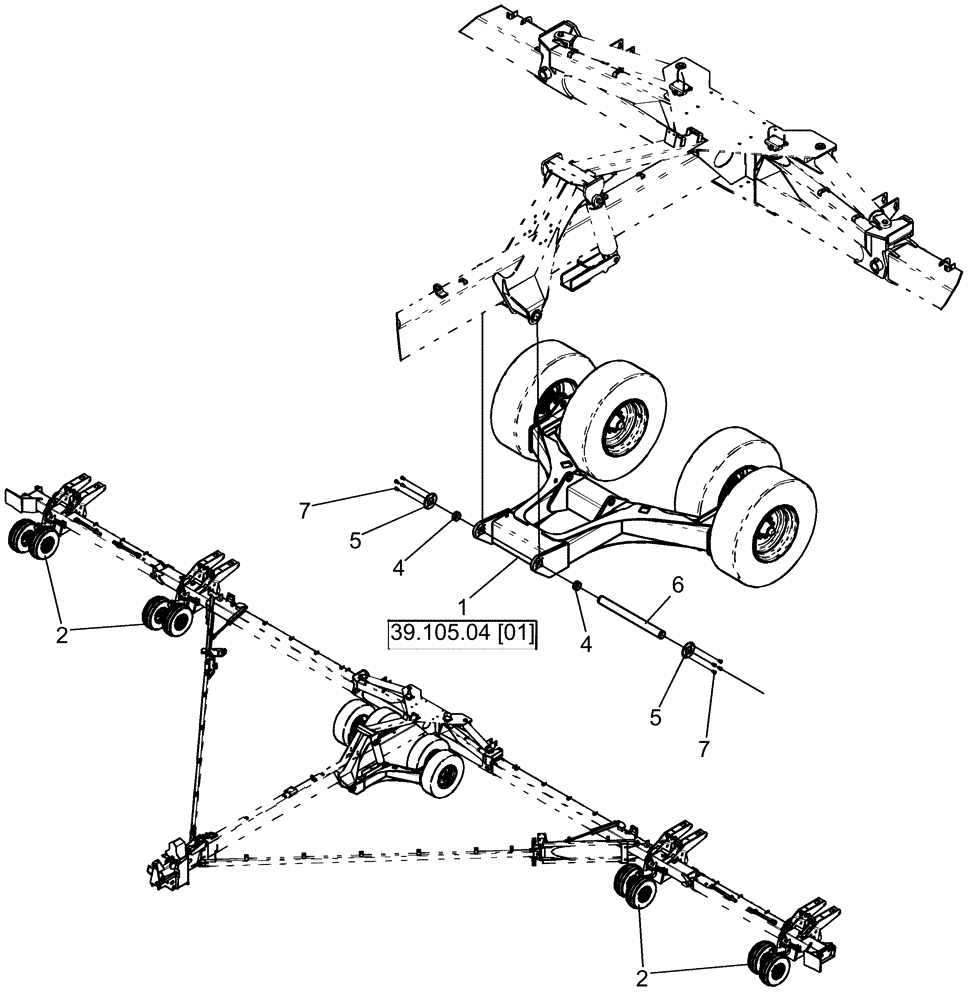

Схема запчастей Case IH 1260 - (44.100.01) - AXLE AND WHEELS - STANDARD WING WHEELS 30" (44) - WHEELS
7
2
7
1
5
4
4
5
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

CARRIER w/ std 8 bolt hub and tire 30"

1шт.

See Figure 39.105.04 [01]

1шт.

2

87708057

TYRE/TIRE

15" x 10" 6h with 12.5l-15fi d

8шт.

4

87419948

BUSHING,76.2mm ID x 82.55mm OD x 31.75mm L

tension 3 1/4" x 3" x 1 1/4" lg

2шт.

5

84229920

SUPPORT

Carrier Pin

2шт.

6

84174254

PIVOT PIN

Main, 76.2 mm x 890 mm

1шт.

7

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.
