(44.100.06) - WHEEL ASSEMBLY - MARKER, CASTER

Запчасти Case IH 1260 (44.100.06) - WHEEL ASSEMBLY - MARKER, CASTER (44) - WHEELS

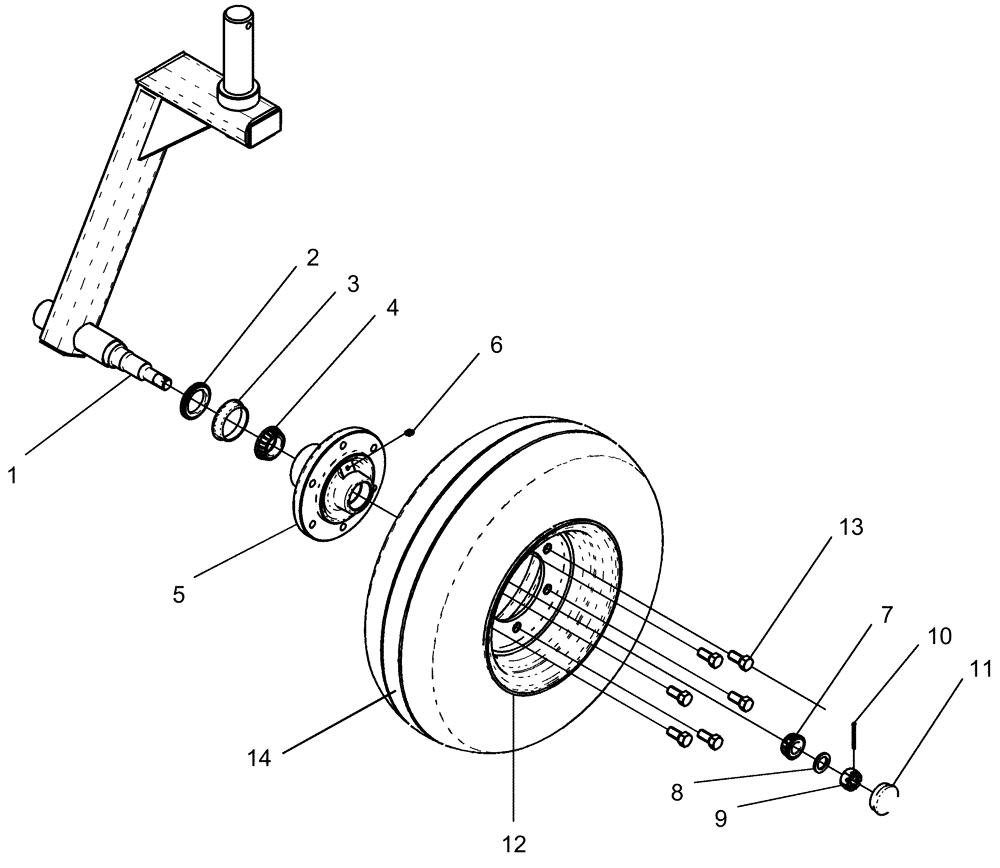

Схема запчастей Case IH 1260 - (44.100.06) - WHEEL ASSEMBLY - MARKER, CASTER (44) - WHEELS
5
4
6
11
14
9
1
3
12
7
13
10
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87470294

FRAME

Marker Caster LH

1шт.

1

84157287

FRAME

Marker Caster RH

1шт.

Not Shown

1шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

hub oil 1.558" id

1шт.

3

472222R1

SLEEVE

wear 2.33" od

1шт.

4

36726

BEARING CONE,31.75mm ID x 16.76mm W

#LM67048

1шт.

4

84356153GV

BEARING

Value

1шт.

5

427737A1

HUB

assembly, 6 bolt light

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

1шт.

7

36724

BEARING CONE,19.07mm ID x 16.64mm W

#LM11949

1шт.

8

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

13/16"id 1 1/4" 1/8" blk hardened

1шт.

9

88886

SLOTTED NUT,3/4"-16

1шт.

10

80708

COTTER PIN,1/8" x 1 1/2"

1шт.

11

427741A1

HUB CAP

1шт.

12

10106202

WHEEL ASSY.

10 x 6 JA, Silver

1шт.

13

198056

WHEEL BOLT,1/2" - 20 x 1.031"

6шт.

14

NSS

NOT SOLD SEPARAT

Tire

1шт.

15

NSS

NOT SOLD SEPARAT

Tire Stem

1шт.

Not Shown

1шт.
