(55.512.09) - ELECTRICAL - BULK FILL LIGHTING HARNESS

Запчасти Case IH 1260 (55.512.09) - ELECTRICAL - BULK FILL LIGHTING HARNESS (55) - ELECTRICAL SYSTEMS

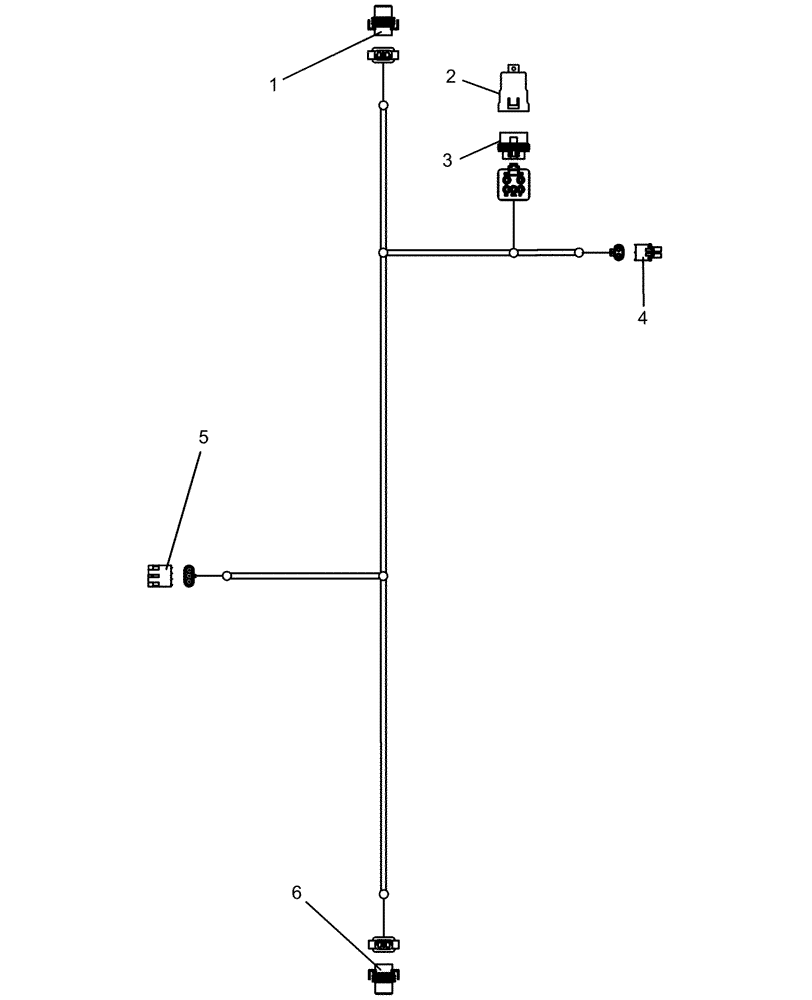

Схема запчастей Case IH 1260 - (55.512.09) - ELECTRICAL - BULK FILL LIGHTING HARNESS (55) - ELECTRICAL SYSTEMS
2
4
5
1
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87493974

HARNESS

bulk fill lighting 32/36/38

1шт.

1

237661A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

2

293256A2

RELAY,12V

12v 40 amp weatherproof

1шт.

3

297910A1

ELEC CONNECTOR,Female, 5 Pin

Packard 280 metri-pack, 5-way

1шт.

4

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

5

245485C1

ELEC CONNECTOR,Male, 3 Pin

plastic 3c receptacle

1шт.

6

237661A1

ELEC CONNECTOR,Female, 2 Pin

1шт.
