(55.512.10) - ELECTRICAL - LIQUID FERTILIZER HARNESS

Запчасти Case IH 1260 (55.512.10) - ELECTRICAL - LIQUID FERTILIZER HARNESS (55) - ELECTRICAL SYSTEMS

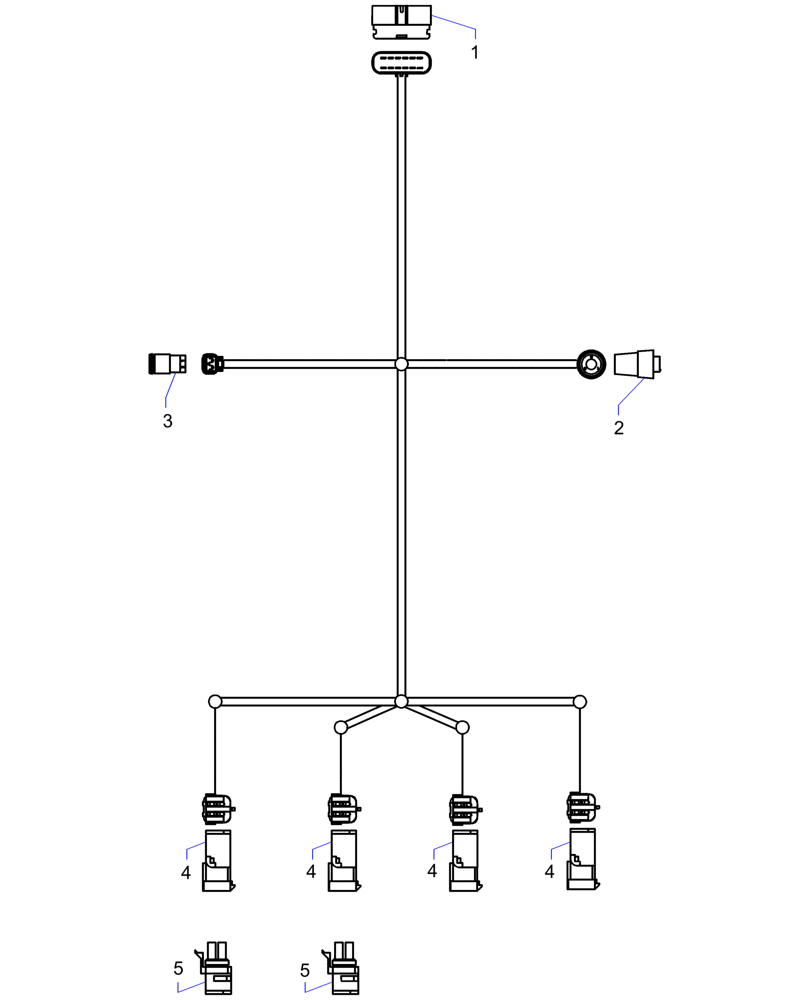

Схема запчастей Case IH 1260 - (55.512.10) - ELECTRICAL - LIQUID FERTILIZER HARNESS (55) - ELECTRICAL SYSTEMS
4
4
5
4
1
5
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87493973

HARNESS

Liquid Fertilizer 32/36/48

1шт.

1

87533279

ELEC CONNECTOR,Male

1шт.

2

339889A1

ELEC CONNECTOR,Male, 3 Pin

electrical, 3 cavity

1шт.

3

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity

1шт.

4

245716C1

ELEC CONNECTOR,Male, 4 Pin

plastic 4c receptacle

4шт.

5

245715C1

ELEC CONNECTOR,4 Pin

plastic 4c plug

2шт.
