(75.100.02) - SEED DRIVE - TILLAGE ATTACHMENT BRACKET

Запчасти Case IH 1260 (75.100.02) - SEED DRIVE - TILLAGE ATTACHMENT BRACKET (75) - SOIL PREPARATION

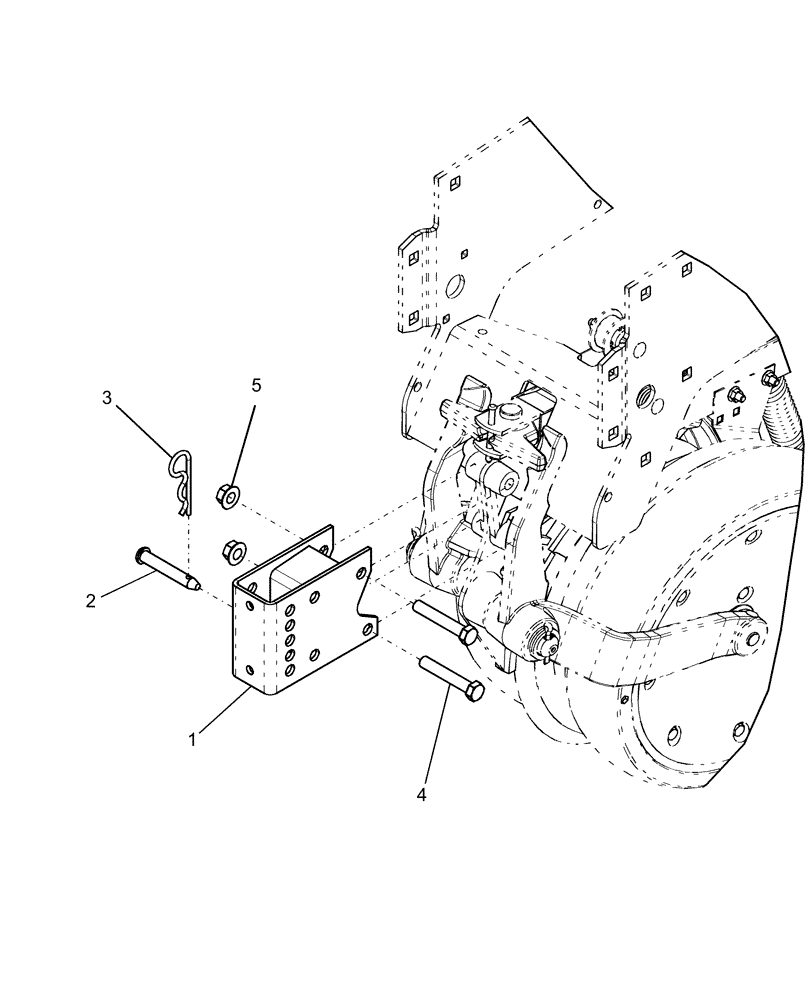

Схема запчастей Case IH 1260 - (75.100.02) - SEED DRIVE - TILLAGE ATTACHMENT BRACKET (75) - SOIL PREPARATION
3
2
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

90974C1

BRACKET

tillage attachment

1шт.

2

147404C1

PIN,12.7mm OD x 83mm L

pointed, 1/2" x 3 1/4"

1шт.

3

86000109

COTTER PIN

QA

1шт.

4

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

5

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.
