(35.100.01[02]) - HYDRAULIC DIRECT DRIVE COLLECT HOSE CLAMP BRACKET, MODEL YEAR 2011

Запчасти Case IH 1260 (35.100.01[02]) - HYDRAULIC DIRECT DRIVE COLLECT HOSE CLAMP BRACKET, MODEL YEAR 2011 (35) - HYDRAULIC SYSTEMS

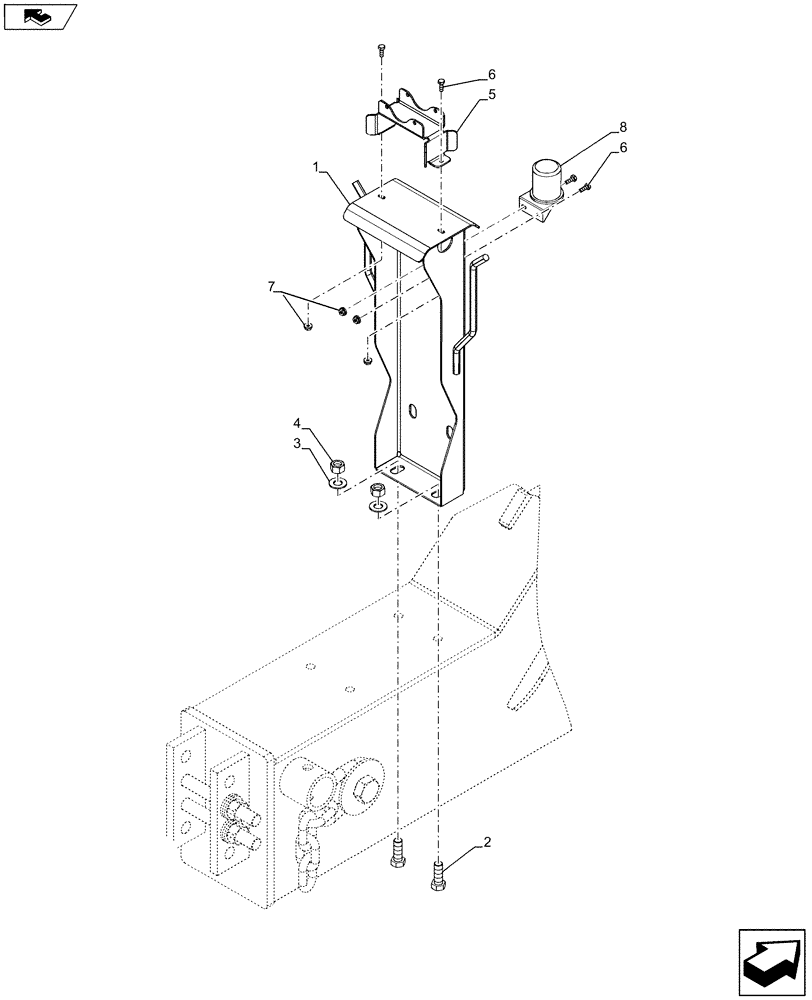

Схема запчастей Case IH 1260 - (35.100.01[02]) - HYDRAULIC DIRECT DRIVE COLLECT HOSE CLAMP BRACKET, MODEL YEAR 2011 (35) - HYDRAULIC SYSTEMS
4
6
3
home
5
8
2
1
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84351945

CLAMP BRACKET

Hose

1шт.

2

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

3

86632590

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

5

84126824

CLAMP BRACKET

Hose

1шт.

6

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

7

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

8

382110A1

CONTACT HOUSING

7-Pin

1шт.
