(35.116.02) - HYDRAULIC CYLINDER - 3 1/2" X 16" ASSEMBLY

Запчасти Case IH 1260 (35.116.02) - HYDRAULIC CYLINDER - 3 1/2" X 16" ASSEMBLY (35) - HYDRAULIC SYSTEMS

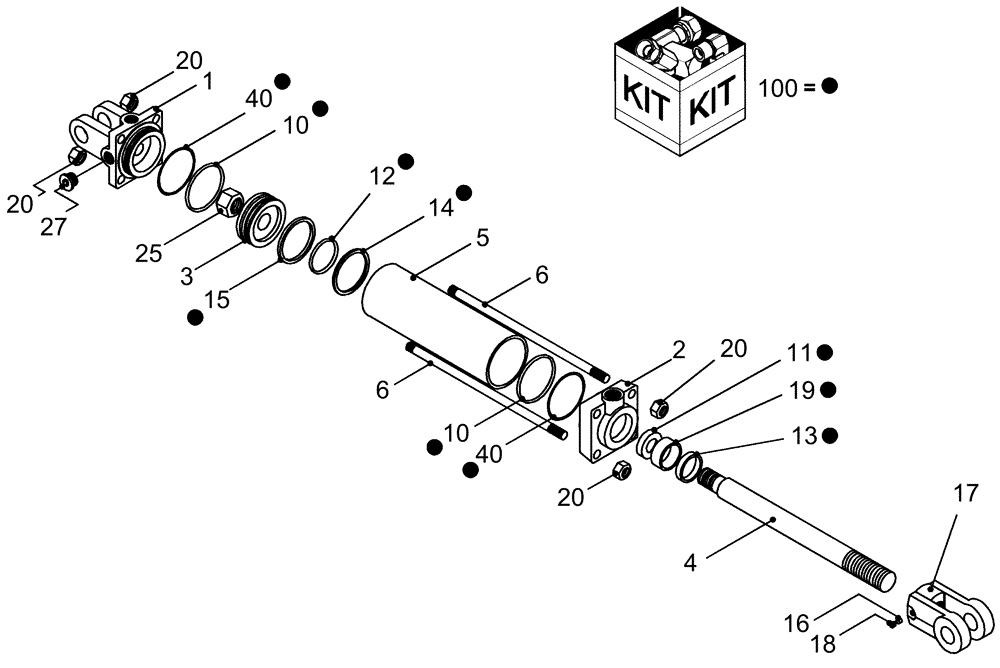

Схема запчастей Case IH 1260 - (35.116.02) - HYDRAULIC CYLINDER - 3 1/2" X 16" ASSEMBLY (35) - HYDRAULIC SYSTEMS
15
17
100
1
20
11
14
18
10
40
20
2
19
4
13
10
20
25
20
16
12
6
27
6
5
3
40
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87446384

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 1/2" x 16" Monarch 3000 psi

1шт.

1

87409430

HEAD

cylinder base 3 1/2" bore

1шт.

2

87409417

HEAD

cylinder front 3 1/2" bore x 1 1/2" rod

1шт.

3

84212859

PISTON

Cylinder 3 1/2" Monarch PSP

1шт.

4

84155866

PISTON ROD

1шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

87409492

THREADED TIE-ROD

hyd cylinder

4шт.

17

84283952

CLEVIS

cylinder 1" pin 1 1/4"-12 rod #492652

1шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

20

408

NUT,5/8" - 18, Gr 5

8шт.

25

87314800

LOCK NUT

1"-14, GA

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

100

47799224

SEAL KIT

Hydraulic Cylinder

1шт.
