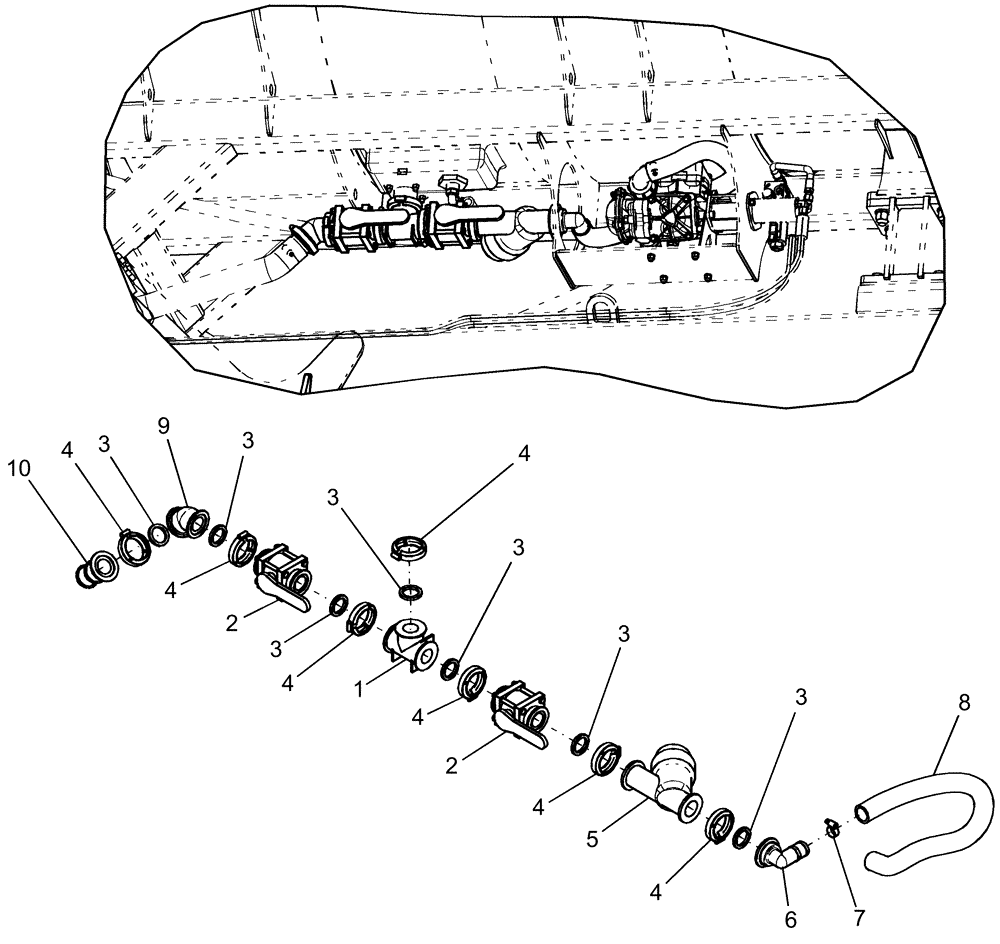

Запчасти Case IH 1260 (75.110.15) - LIQUID FERTILIZER - TANK VALVES (75) - SOIL PREPARATION

1

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

1шт.

2

405800A1

VALVE,2" Flange Ball Valve

ball 2" flange bolted

2шт.

3

BN303204

GASKET,1-1/2" EPDM Gasket

2 7/32" od x 1 41/64" id x 1/4" thick

7шт.

4

400502A1

CLAMP,80.96mm ID

2" flange banjo #fc200

7шт.

5

405798A1

STRAINER ELEMENT,AAH

fitting poly y 2" line 80 mesh

1шт.

Includes 405798A1, 87413266, 87413267

1шт.

6

405783A1

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

2" Flange x 1 1/4", 90º HB

1шт.

7

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

2шт.

8

1264065C1

HOSE

pvc 1 1/2" id x 1 3/4" od x 1'

1шт.

Cut to 1016 mm

1шт.

9

86984086

COUPLING

45°

1шт.

10

405780A1

FITTING,2" Flange x 2" Hose Barb

poly str 2 flng x 2 hb

1шт.
