(35.116.03) - HYDRAULIC CYLINDER - 3 1/2" X 8" ASSEMBLY

Запчасти Case IH 1260 (35.116.03) - HYDRAULIC CYLINDER - 3 1/2" X 8" ASSEMBLY (35) - HYDRAULIC SYSTEMS

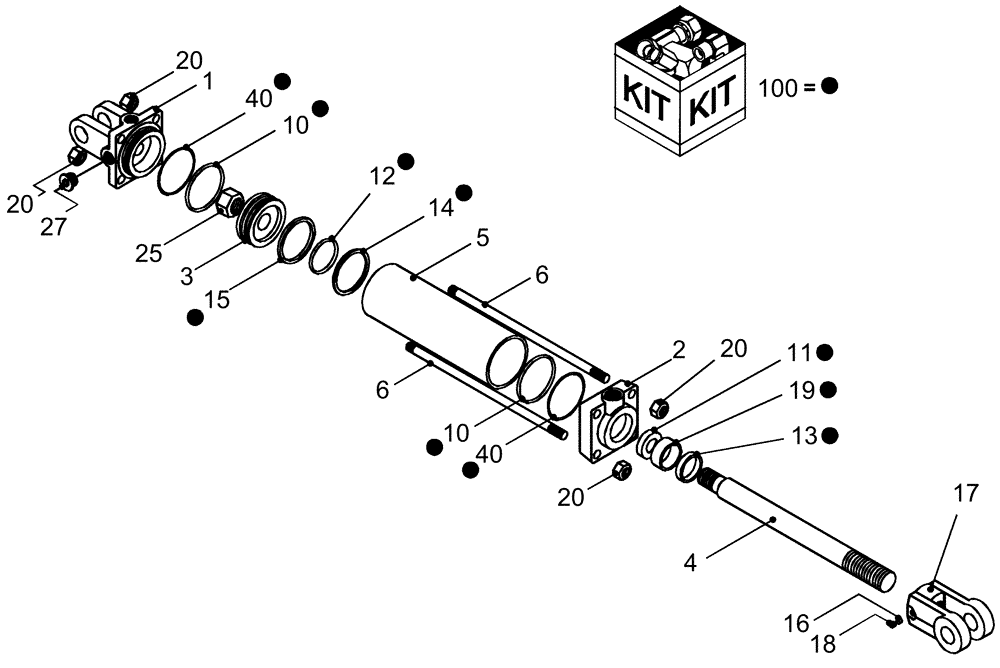

Схема запчастей Case IH 1260 - (35.116.03) - HYDRAULIC CYLINDER - 3 1/2" X 8" ASSEMBLY (35) - HYDRAULIC SYSTEMS
3
10
20
40
19
17
10
20
15
20
18
27
12
16
1
2
100
6
14
11
20
4
25
5
6
13
40
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

84174458

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 1/2" x 8" Rod Pivot Eye

1шт.

1

87409430

HEAD

cylinder base 3 1/2" bore

1шт.

2

87409395

HEAD

cylinder front 3 1/2" bore x 1 1/4" rod

1шт.

3

87409481

PISTON

cylinder 3 1/2" bore Monarch #494738

1шт.

4

84262406

PISTON ROD

1шт.

6

87409486

BOLT

5/8"-11 hydraulic cylinder tie

4шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

17

87661330

TUBE,3.5 mm DIA x 8 mm L

cylinder 3 1/2" x 8"

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

20

86643107

NUT,5/8" - 18, Gr 8

5/8"-18, G8

4шт.

25

87314800

LOCK NUT

1"-14, GA

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

100

87739813

SEAL KIT

3 1/2" Monarch

1шт.
