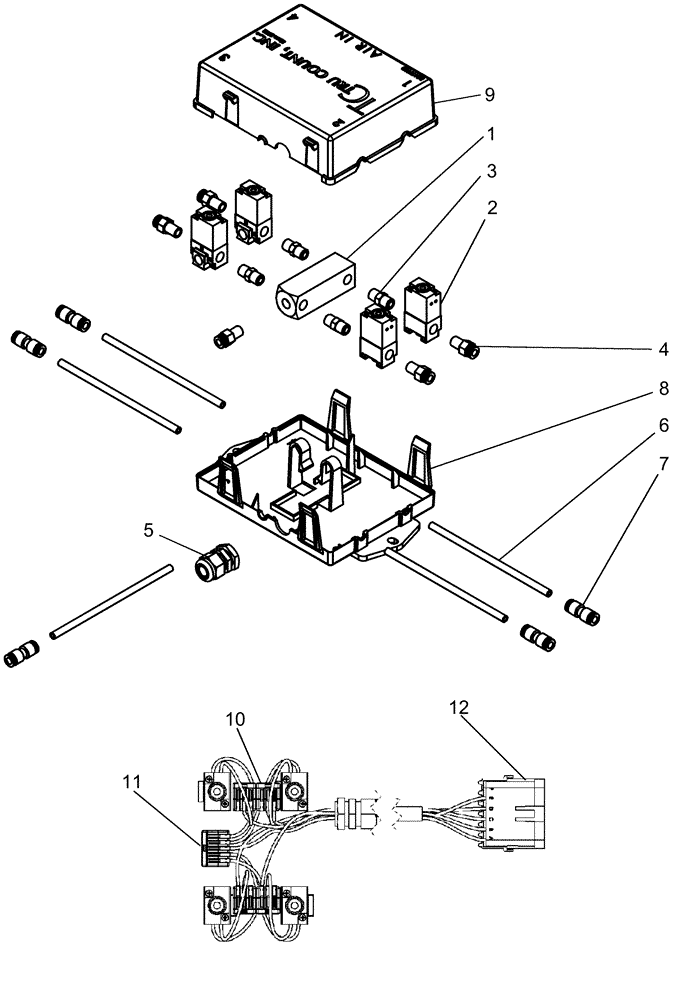

Запчасти Case IH 1260 (75.110.19[02]) - ACCUROW - VALVE ASSEMBLY, AIR CLUTCH (75) - SOIL PREPARATION

0

84170217

VALVE

pneumatic clutch

3шт.

0

84170217R

REMAN-HYD VALVE

1265 32/30, 1265 36/20, 1265 36/30, 1265 36/22, All FRONT FOLD WF TRAIL PLANTER (12/12-), 1260 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES (1/10-), All pneumatic clutch

3шт.

0

84170217C

CORE-VALVE HYD

Return Number

3шт.

1

84143647

MANIFOLD

air distribution

1шт.

2

84143650

CONTROL VALVE

section

4шт.

3

87014030

FITTING,1/8"-27 NPTF, Brass

4шт.

4

84256879

FITTING

Straight, 1/4" PTC x 1/8" npt

5шт.

5

84143654

SLEEVE

strain relief

1шт.

6

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

250' roll

5шт.

Cut 165 mm from bulk hose

1шт.

7

84171932

PACKAGE

1/4" tube x 1/4" tube

5шт.

8

84143641

HOUSING

valve

1шт.

9

84171935

VALVE COVER

housing

1шт.

10

84171939

WIRE CONNECTOR

splice 3-wire

4шт.

11

84171943

WIRE CONNECTOR

splice 5-wire

1шт.

12

87692859

MULTIPOLE CONNECTOR,Male, 6 Pole

ES-A7380

1шт.
