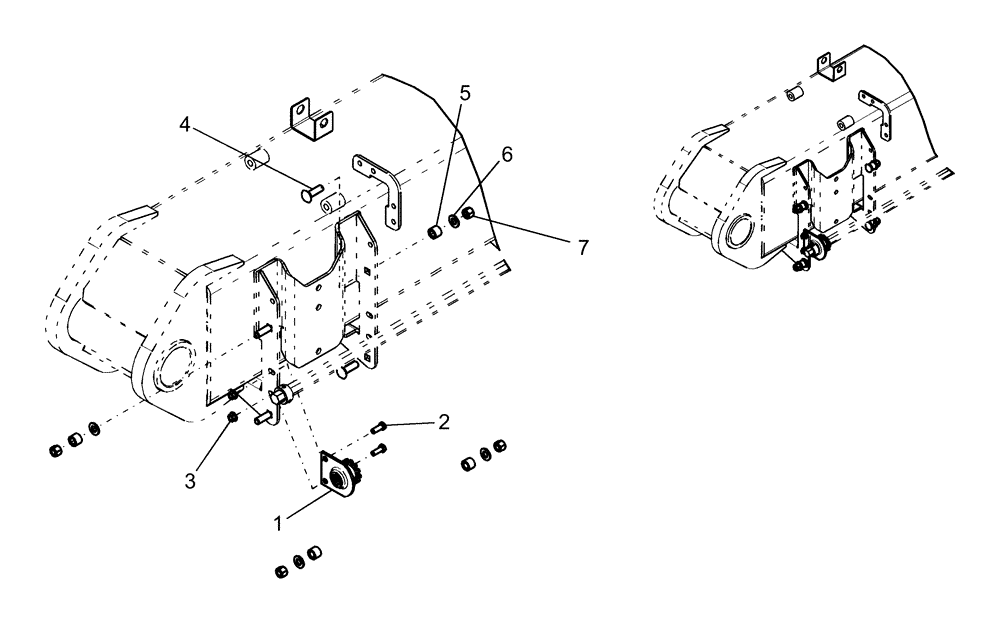

Запчасти Case IH 1260 (75.200.06) - ROW UNIT - STANDARD HARDWARE (75) - SOIL PREPARATION

1

413712A1

BEARING ASSY,1.90625" OD x 1.875"

12 tooth with bearing

1шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

4

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

4шт.

5

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

link pivot

4шт.

6

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

7

87333862

NUT

1/2"-13, GB

4шт.
