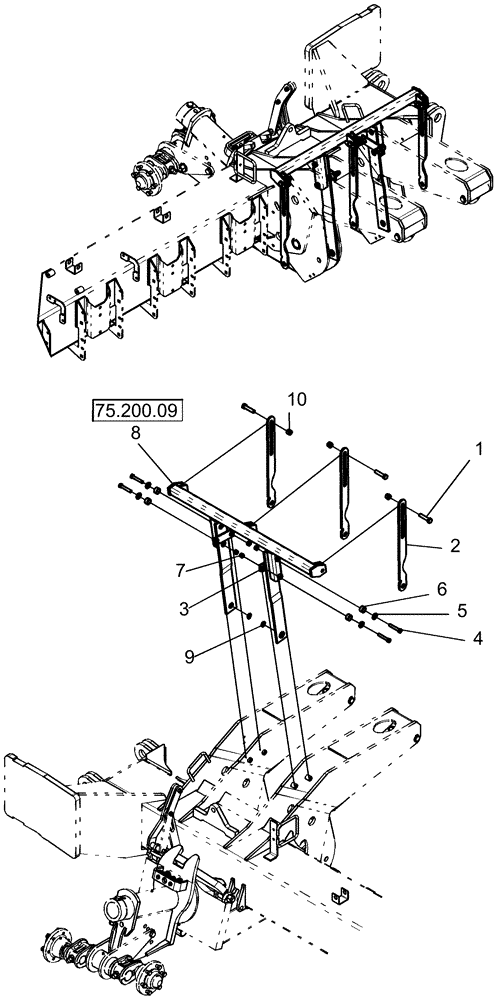

Запчасти Case IH 1260 (75.200.08) - ROW UNIT - LIFT SUPPORT 22", MODEL YEAR 2010 AND BEFORE (75) - SOIL PREPARATION

1

88693

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

3шт.

2

84142451

SUPPORT

Lift Link, Row Unit

3шт.

3

87708934

WEAR PAD

Row Unit Lift Link

2шт.

4

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

5

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

6

87500592

BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L

composite 1 1/4" x 1" x 3/4"

4шт.

7

86992215

LOCK NUT,1/2"-13, GC

4шт.

8

NSS

NOT SOLD SEPARAT

1шт.

See Figure 75.200.09

1шт.

9

87019495

SNAP RING,#98, Ext

2шт.

10

85700693

NUT,5/8" - 11, Gr C

3шт.
