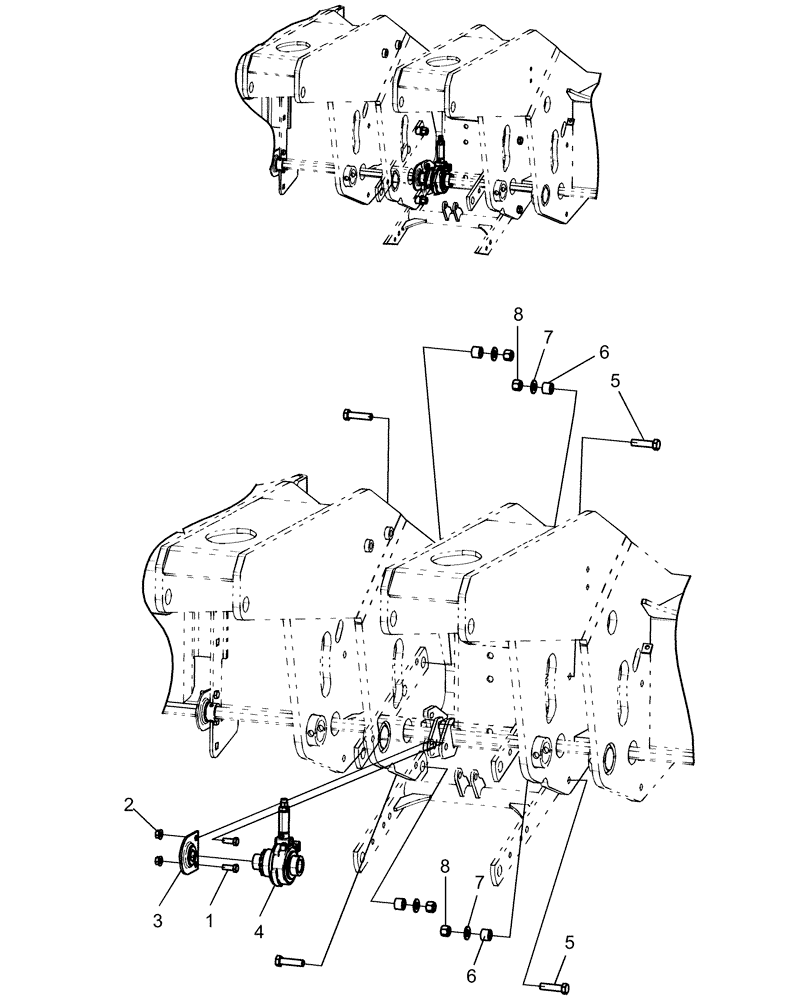

Запчасти Case IH 1260 (75.200.12) - ROW UNIT - PNEUMATIC SEED DRIVE (75) - SOIL PREPARATION

1

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

3

102724A2

BALL BEARING,22.6mm ID

7/8" hex bore with hanger

1шт.

4

84133322

CLUTCH

pneumatic seed drive

1шт.

4

84133322R

REMAN-CLUTCH ASSY

1260 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES, Pneumatic seed drive (1/10-)

1шт.

4

84133322C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

5

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

5

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

4шт.

Not Shown

1шт.

6

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

link pivot

4шт.

7

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

8

87333862

NUT

1/2"-13, GB

4шт.
