(75.200.17[02]) - ROW UNIT - VACUUM HOSE CENTER 60

Запчасти Case IH 1260 (75.200.17[02]) - ROW UNIT - VACUUM HOSE CENTER 60 (75) - SOIL PREPARATION

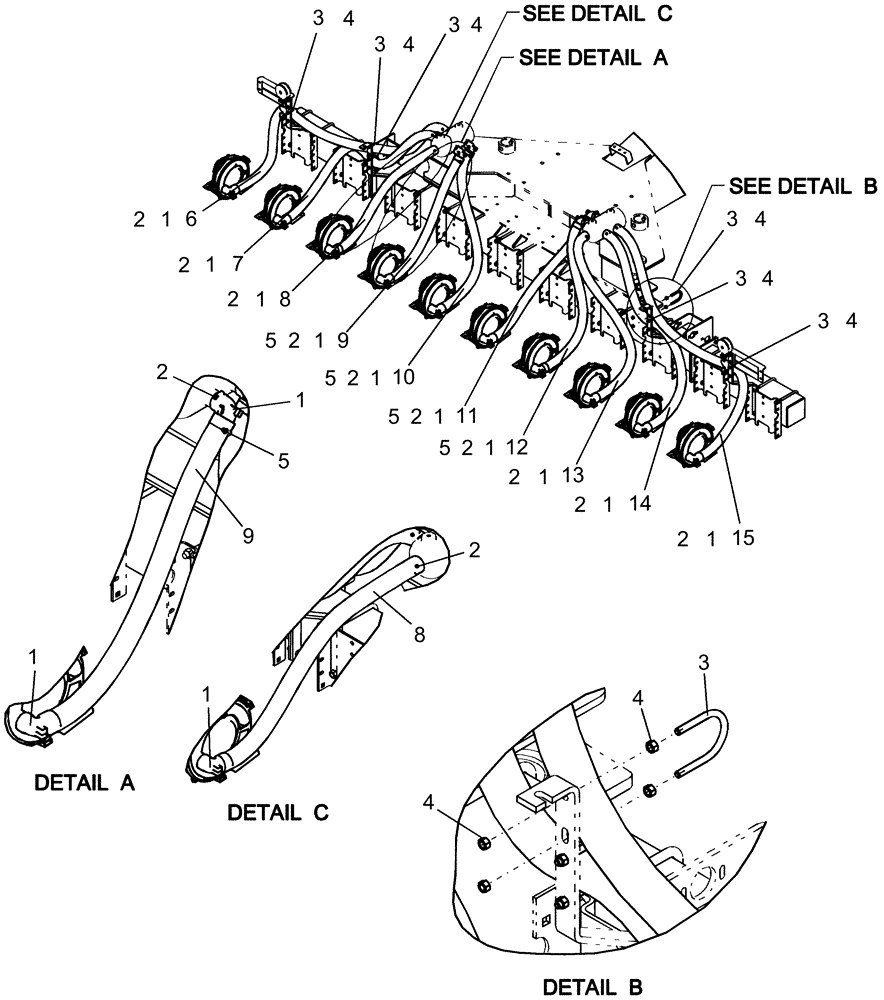

Схема запчастей Case IH 1260 - (75.200.17[02]) - ROW UNIT - VACUUM HOSE CENTER 60 (75) - SOIL PREPARATION
2
9
4
1
1
3
3
1
5
2
1
4
6
1
3
3
1
1
1
5
4
1
5
3
9
13
4
12
1
2
2
10
4
2
8
3
4
1
15
2
2
14
1
4
3
2
2
8
2
1
5
7
5
2
2
4
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87500119

TUBE

90º 50 mm - vacuum

14шт.

2

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

10шт.

3

84206676

U-BOLT

3/8"-16 x 2 1/2" x 3 1/2", G5

6шт.

4

9628503

NUT,3/8"-16, G5

24шт.

5

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

4шт.

6

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 2410 mm

1шт.

7

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1835 mm

1шт.

8

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1520 mm

1шт.

9

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1157 mm

1шт.

10

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1350 mm

1шт.

11

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1350 mm

1шт.

12

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1157 mm

1шт.

13

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1640 mm

1шт.

14

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1835 mm

1шт.

15

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1835 mm

1шт.
