(75.200.18[02]) - ROW UNIT - VACUUM HOSE LT 60

Запчасти Case IH 1260 (75.200.18[02]) - ROW UNIT - VACUUM HOSE LT 60 (75) - SOIL PREPARATION

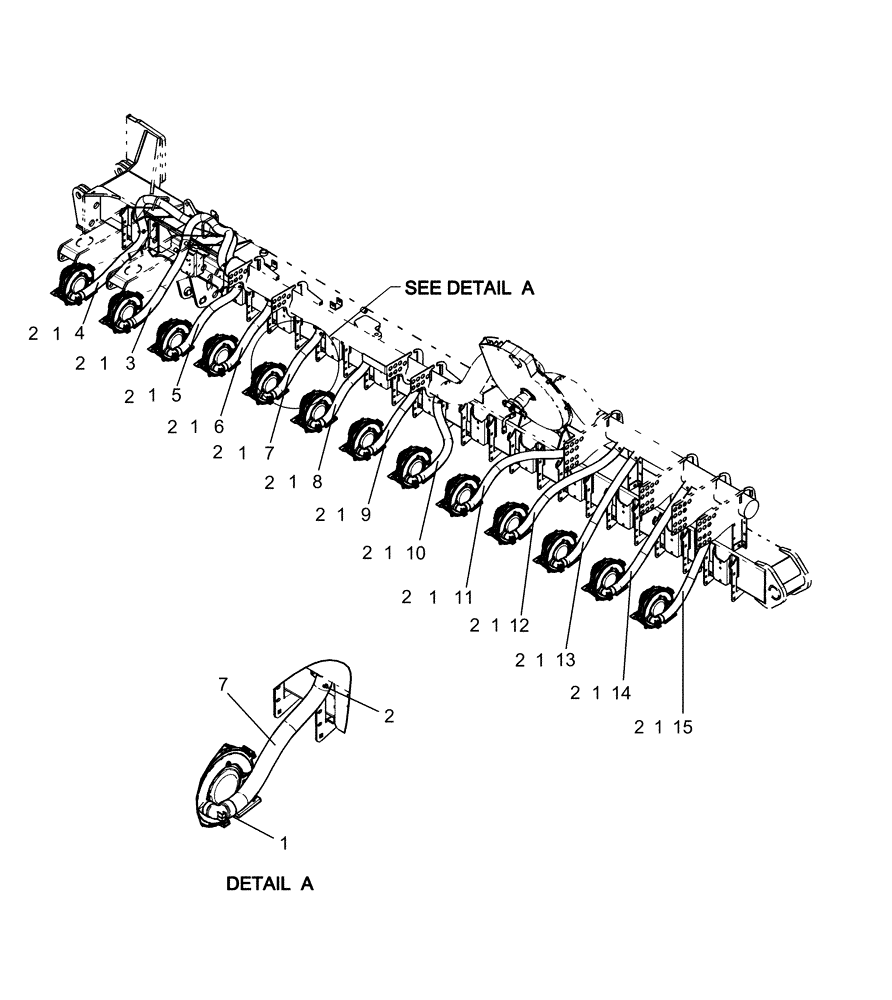

Схема запчастей Case IH 1260 - (75.200.18[02]) - ROW UNIT - VACUUM HOSE LT 60 (75) - SOIL PREPARATION
1
11
1
2
2
1
13
3
1
14
1
2
1
2
15
1
1
7
2
12
2
1
8
2
10
2
1
2
1
4
2
1
1
9
2
2
6
2
5
1
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87500119

TUBE

90º 50 mm - vacuum

13шт.

2

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

13шт.

3

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1835 mm

1шт.

4

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1640 mm

1шт.

5

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 810 mm

1шт.

6

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 810 mm

1шт.

7

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 810 mm

1шт.

8

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 810 mm

1шт.

9

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 810 mm

1шт.

10

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 927 mm

1шт.

11

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1520 mm

1шт.

12

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1157 mm

1шт.

13

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1157 mm

1шт.

14

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1157 mm

1шт.

15

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1157 mm

1шт.
