(75.200.19[02]) - ROW UNIT - VACUUM HOSE RT 60

Запчасти Case IH 1260 (75.200.19[02]) - ROW UNIT - VACUUM HOSE RT 60 (75) - SOIL PREPARATION

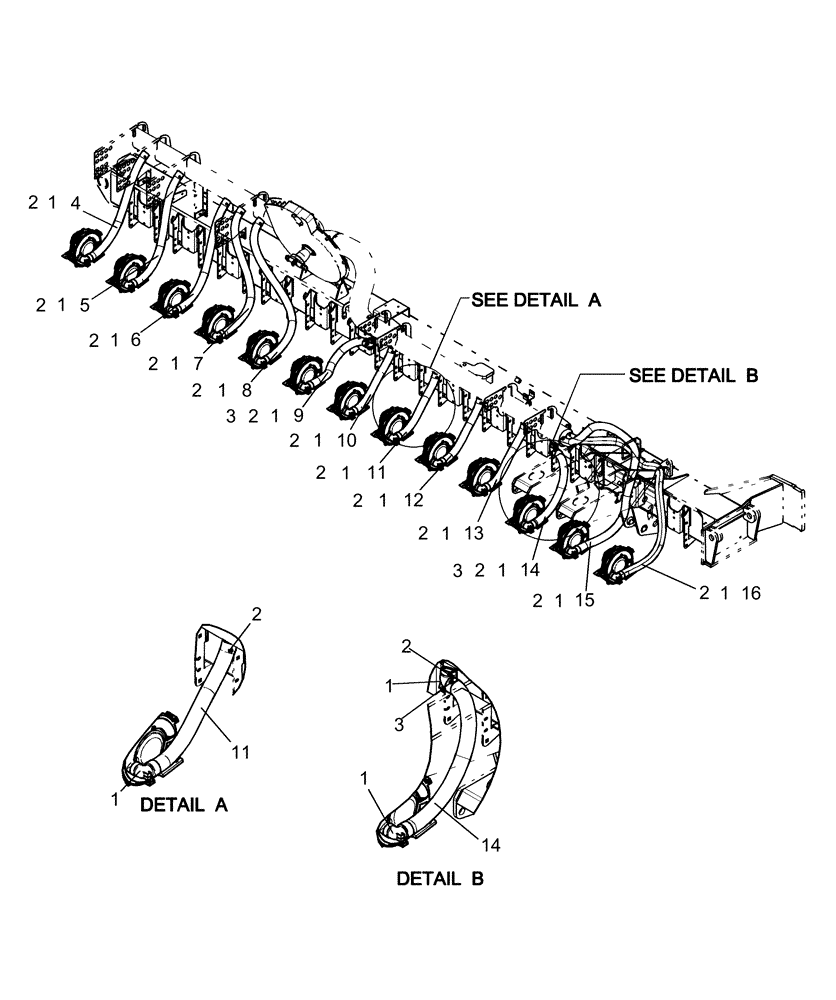

Схема запчастей Case IH 1260 - (75.200.19[02]) - ROW UNIT - VACUUM HOSE RT 60 (75) - SOIL PREPARATION
2
14
13
2
2
2
1
1
2
1
2
5
3
1
11
7
2
10
2
8
1
2
6
12
1
15
2
1
2
2
2
1
3
2
1
1
2
9
4
3
1
1
16
1
1
1
11
14
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87500119

TUBE

90º 50 mm - vacuum

15шт.

2

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

13шт.

3

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

4

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1157 mm

1шт.

5

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1157 mm

1шт.

6

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1157 mm

1шт.

7

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1157 mm

1шт.

8

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1520 mm

1шт.

9

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 927 mm

1шт.

10

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 810 mm

1шт.

11

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 810 mm

1шт.

12

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 810 mm

1шт.

13

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 810 mm

1шт.

14

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1130 mm

1шт.

15

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 1835 mm

1шт.

16

87501726

HOSE

vacuum 2" x 50' bulk

1шт.

Cut to 2150 mm

1шт.
