(35.116.12[01]) - HYDRAULIC CYLINDER - WING WHEEL 5" (32R30 AND 36R30)

Запчасти Case IH 1260 (35.116.12[01]) - HYDRAULIC CYLINDER - WING WHEEL 5" (32R30 AND 36R30) (35) - HYDRAULIC SYSTEMS

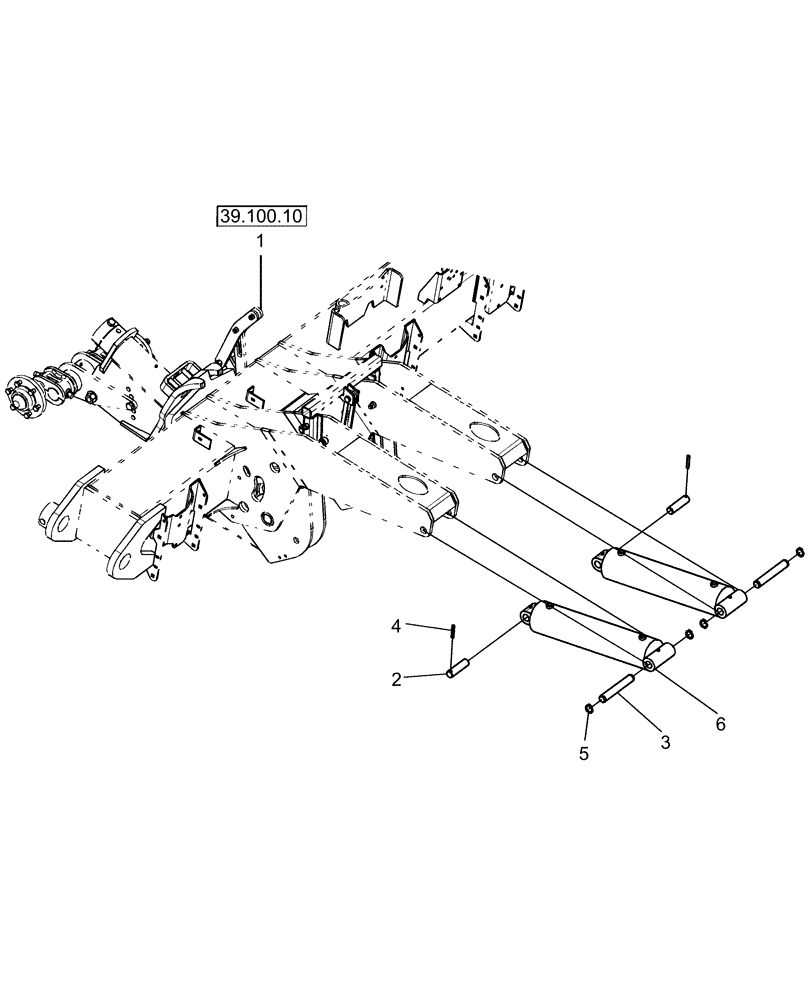

Схема запчастей Case IH 1260 - (35.116.12[01]) - HYDRAULIC CYLINDER - WING WHEEL 5" (32R30 AND 36R30) (35) - HYDRAULIC SYSTEMS
3
4
2
1
39.100.10
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

WING WHEEL ASSEMBLY

1шт.

See Figure 39.100.10

1шт.

2

87687202

PIN

31.75 mm x 120 fl

2шт.

3

87695471

PIN

31.75 X 194.7 UL ZND

2шт.

4

87635861

ROLL PIN

3/8" x 2 1/2"

2шт.

5

86625148

SNAP RING,#125, Ext

4шт.

6

87746654

HYDRAULIC CYLINDER,Double Acting, 57.15mm Rod, 456.95mm Stroke

5" X 18" D-Phase

2шт.

6

84174440

HYDRAULIC CYLINDER,Double Acting, 47.63mm Rod, 456.95mm Stroke

4 1/2" x 18"

2шт.
