(80.150.23[01]) - BULK FILL - GRATE SHUT-OFF ASSEMBLY, MODEL YEAR 2010 AND BEFORE

Запчасти Case IH 1260 (80.150.23[01]) - BULK FILL - GRATE SHUT-OFF ASSEMBLY, MODEL YEAR 2010 AND BEFORE (80) - CROP STORAGE/UNLOADING

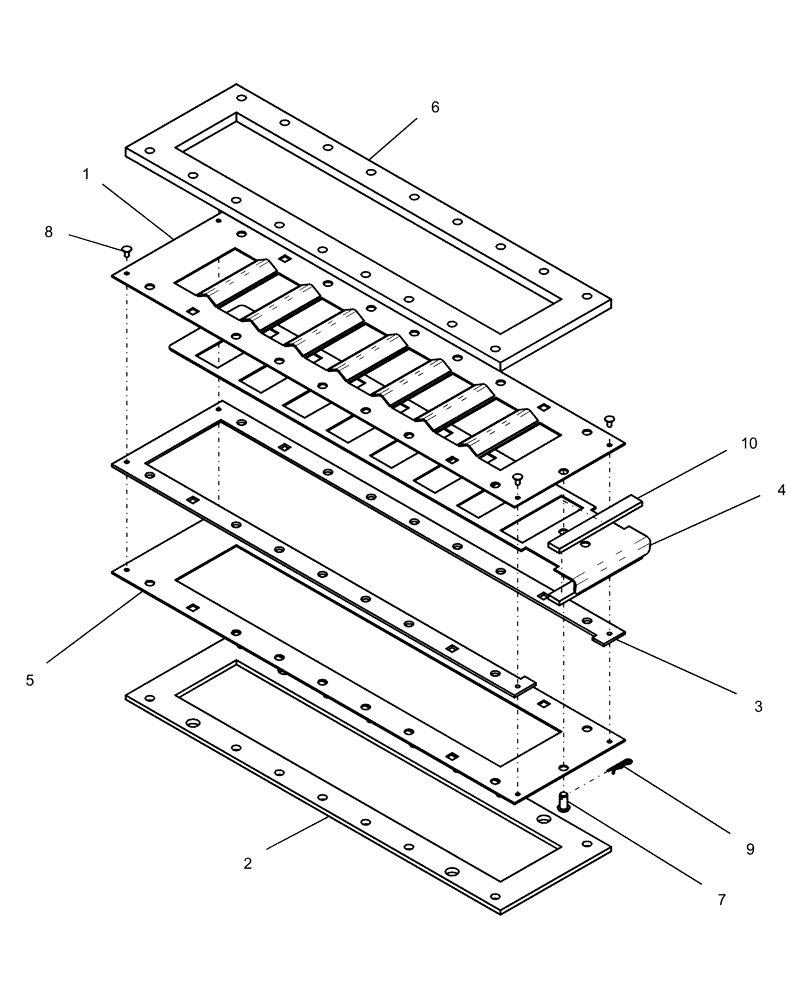

Схема запчастей Case IH 1260 - (80.150.23[01]) - BULK FILL - GRATE SHUT-OFF ASSEMBLY, MODEL YEAR 2010 AND BEFORE (80) - CROP STORAGE/UNLOADING
6
5
3
4
1
8
10
2
7
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87751086

GRATE

seed control

1шт.

2

87750782

GASKET

seed gate, bottom

1шт.

3

87751092

GUIDE

seed grate

1шт.

4

87751090

GRATE

shut off

1шт.

5

87750786

SUPPORT

seed gate

1шт.

6

87750781

GASKET

seed gate, top

1шт.

7

86624060

HEADED PIN,3/8" x 3/4", G2

1шт.

8

449-36

RIVET,Truss Hd, 3/16" x 3/8"

4шт.

9

86624096

COTTER PIN,Int, 3/16 x .080"

1шт.

10

87445222

GASKET

seed gate

2шт.
