(35.116.12[02]) - HYDRAULIC CYLINDER - WING WHEEL 5" (36R20 AND 36R22)

Запчасти Case IH 1260 (35.116.12[02]) - HYDRAULIC CYLINDER - WING WHEEL 5" (36R20 AND 36R22) (35) - HYDRAULIC SYSTEMS

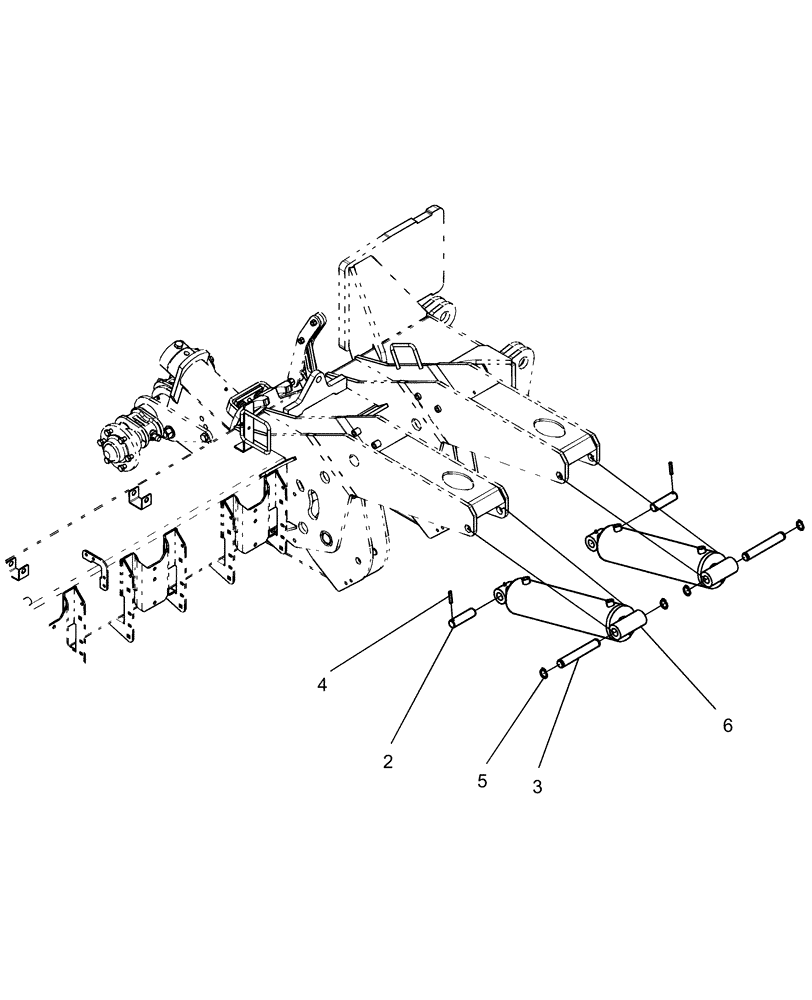

Схема запчастей Case IH 1260 - (35.116.12[02]) - HYDRAULIC CYLINDER - WING WHEEL 5" (36R20 AND 36R22) (35) - HYDRAULIC SYSTEMS
4
3
6
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

87687202

PIN

31.75 mm x 120 fl

2шт.

3

87695471

PIN

31.75 X 194.7 UL ZND

2шт.

4

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

2шт.

5

86625148

SNAP RING,#125, Ext

4шт.

6

87671036

HYDRAULIC CYLINDER,Double Acting, 57.15mm Rod, 456.95mm Stroke

5" x 18" Phase

2шт.
