(90.180.11) - DECALS - OUTER WING

Запчасти Case IH 1260 (90.180.11) - DECALS - OUTER WING (90) - PLATFORM, CAB, BODYWORK AND DECALS

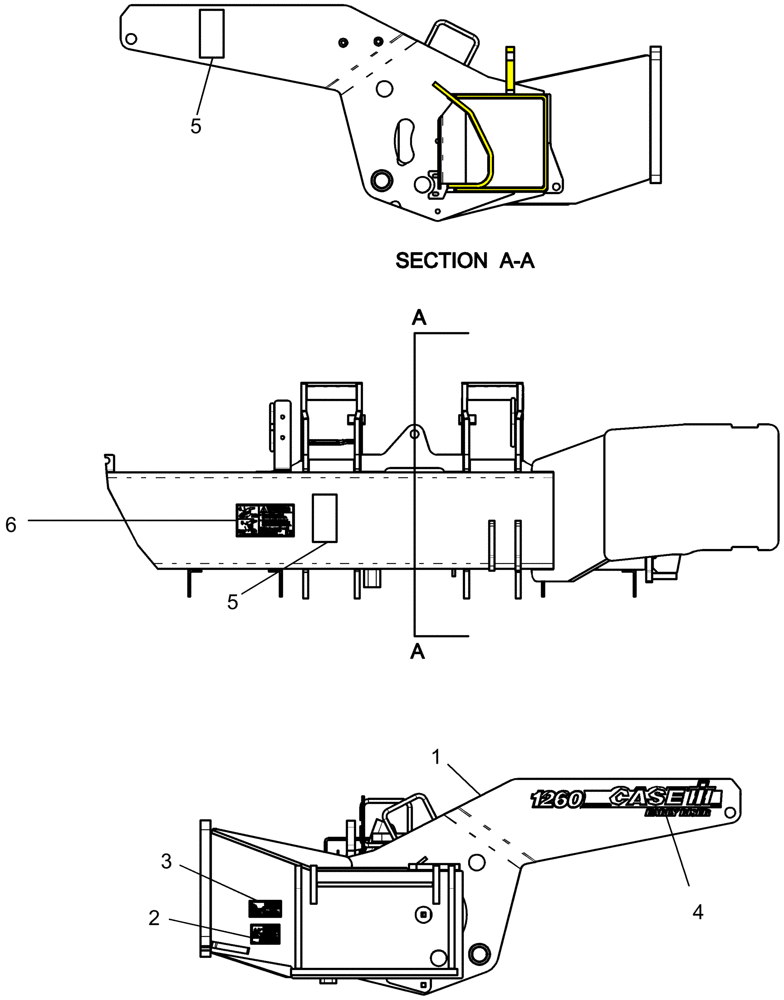

Схема запчастей Case IH 1260 - (90.180.11) - DECALS - OUTER WING (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
5
1
2
5
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84204848

FRAME

Outer Wing With Decal LH

1шт.

1

84204849

FRAME

Outer Wing With Decal RH

1шт.

2

87588039

DECAL

marker crush hazard

1шт.

3

416611A1

DECAL

danger electrical electrocution hazard

1шт.

4

84162968

DECAL

1260, LH short

1шт.

4

84162969

DECAL

1260 RH short

1шт.

Not Shown

1шт.

5

278214A1

DECAL

Warning, Pinch Point

2шт.

6

84196417

DECAL

safety stand install

1шт.
