(35.138.09) - HYDRAULICS - MULTI-VALVE DIRECT DRIVE ASSEMBLY

Запчасти Case IH 1260 (35.138.09) - HYDRAULICS - MULTI-VALVE DIRECT DRIVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

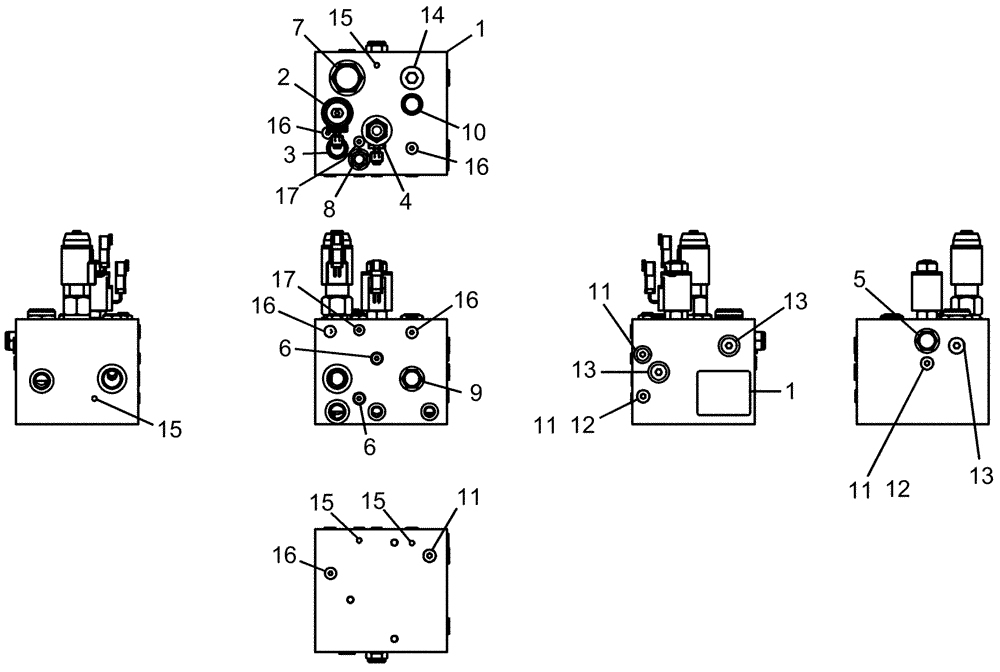

Схема запчастей Case IH 1260 - (35.138.09) - HYDRAULICS - MULTI-VALVE DIRECT DRIVE ASSEMBLY (35) - HYDRAULIC SYSTEMS
13
6
2
1
4
13
13
8
11
12
11
17
12
3
14
10
11
15
16
15
16
6
5
17
16
15
11
16
15
1
7
9
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87575905

VALVE

assembly direct drive

1шт.

2

254969A2

HYDRAULIC VALVE

flow control cartridge

1шт.

3

NSS

NOT SOLD SEPARAT

CHECK VALVE

1шт.

4

304495A3

VALVE

cartridge, flow control

1шт.

304495A3R

REMAN-HYD VALVE

1260 RISER® SERIES (1/10-)

1шт.

304495A3C

CORE-VALVE HYD

Return Number

1шт.

84537688R

REMAN-HYD VALVE

1260 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES (1/10-), Reman For New P/N 304495A3

1шт.

84537688C

CORE-VALVE HYD

Return Number

1шт.

5

NSS

NOT SOLD SEPARAT

DIFF. PRESS SENSING VALVE

1шт.

6

1341811C1

SPRING-CHECK

REPAIR KIT sense check

2шт.

7

NSS

NOT SOLD SEPARAT

PRESS. COMP FLOW REGULATOR

1шт.

8

NSS

NOT SOLD SEPARAT

FLOW REGULATOR

1шт.

9

NSS

NOT SOLD SEPARAT

CAVITY PLUG

1шт.

10

NSS

NOT SOLD SEPARAT

CAVITY PLUG

1шт.

11

NSS

NOT SOLD SEPARAT

SAE PLUG

4шт.

12

NSS

NOT SOLD SEPARAT

ORIFICE PLUG

2шт.

13

NSS

NOT SOLD SEPARAT

SAE PLUG

3шт.

14

9625178

PLUG,9/16" - 18 ORB

1шт.

15

NSS

NOT SOLD SEPARAT

EXPANDER PLUG

4шт.

16

9625178

PLUG,9/16" - 18 ORB

5шт.

17

NSS

NOT SOLD SEPARAT

SAE PLUG

2шт.
