(35.220.03) - HYDRAULICS - COLLECT AUX DRIVE

Запчасти Case IH 1260 (35.220.03) - HYDRAULICS - COLLECT AUX DRIVE (35) - HYDRAULIC SYSTEMS

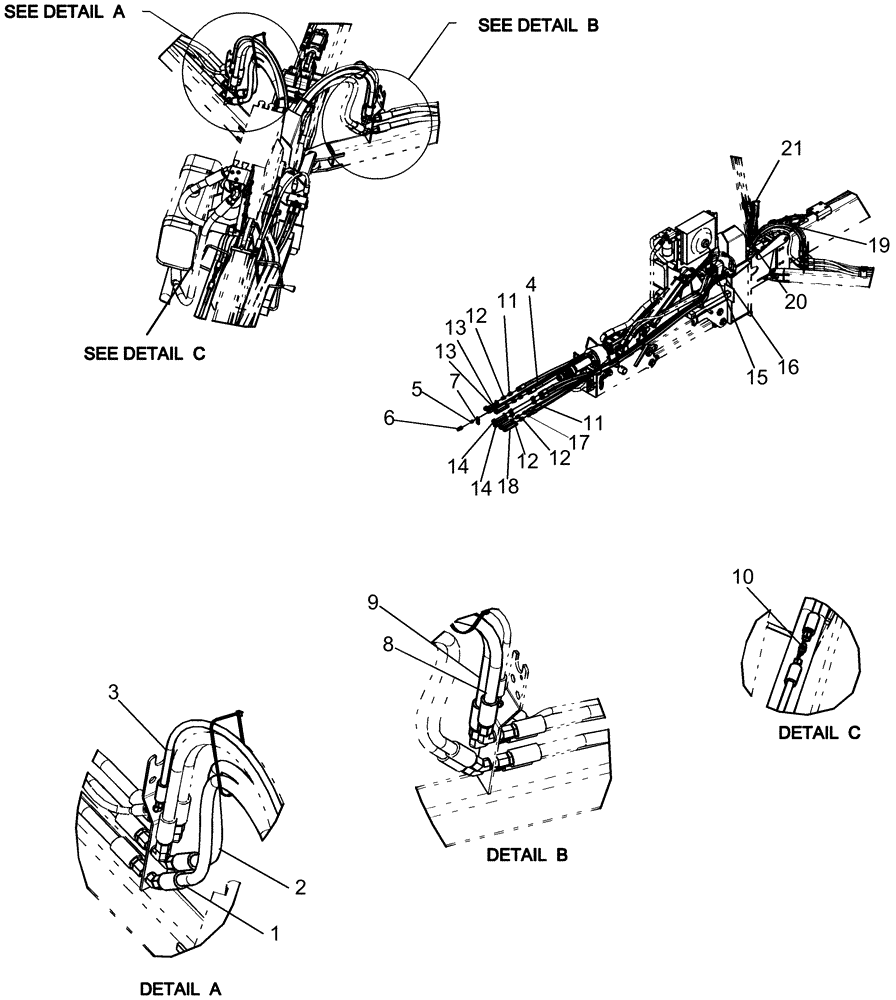

Схема запчастей Case IH 1260 - (35.220.03) - HYDRAULICS - COLLECT AUX DRIVE (35) - HYDRAULIC SYSTEMS
15
4
20
16
12
17
7
14
14
18
2
13
10
6
8
21
13
12
9
11
5
19
12
3
1
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84158625

HYDRAULIC HOSE,19.05mm ID x 5150mm L, SAE 100R17

19 mm x 5150 mm fl

1шт.

2

84158625

HYDRAULIC HOSE,19.05mm ID x 5150mm L, SAE 100R17

19 mm x 5150 mm fl

1шт.

3

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8" x 95" fl

1шт.

4

139519C2

HYDRAULIC HOSE

3/8" x 135" fl

1шт.

5

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

6

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

7

86984798

TAG

warning, case drain

1шт.

8

84158625

HYDRAULIC HOSE,19.05mm ID x 5150mm L, SAE 100R17

19 mm x 5150 mm fl

1шт.

9

84158625

HYDRAULIC HOSE,19.05mm ID x 5150mm L, SAE 100R17

19 mm x 5150 mm fl

1шт.

10

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

11

144124

HYD CONNECTOR,1-1/16" - 12 JIC x 7/8" - 14 ORB

4шт.

12

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

6шт.

13

86621124

DUST CAP

Female, Quick Coupler, Black

2шт.

14

333721A1

CAP

female quick coupler red

2шт.

15

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

1шт.

16

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

1шт.

17

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

2шт.

18

333718A1

CAP

Female QC orange

2шт.

19

112620A1

CABLE TIE

CABLE STRAP 34"

7шт.

20

112620A1

CABLE TIE

CABLE STRAP 34"

1шт.

21

112620A1

CABLE TIE

CABLE STRAP 34"

1шт.
