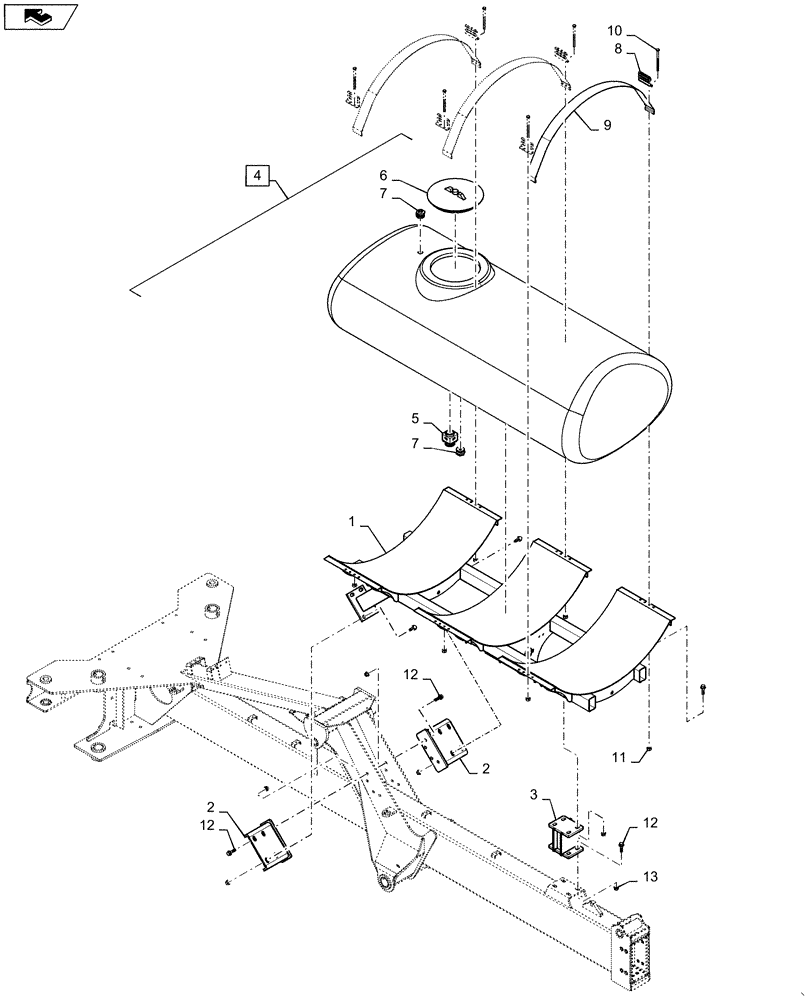

Запчасти Case IH 1265 (63.100.AF[01]) - LIQUID FERTILIZER FRAME AND TANK FOR 36/30, 32/30, 36/22 (63) - CHEMICAL APPLICATORS

1

84157784

FRAME

600 Gallon Tank Painted

1шт.

2

87691232

SUPPORT

Fertilizer Frame Painted

2шт.

3

84174268

SUPPORT

600 Gallon Tank Painted

1шт.

4

87607560

TANK

600 Gallon Incl 5 - 7

1шт.

5

405789A1

FITTING

Bottom Drain

1шт.

6

87628258

LID

600 Gallon Tank

1шт.

7

406148A1

FITTING

3/4 Tank

2шт.

8

87647049

PLATE

Strap Anchor

6шт.

9

87660684

STRAP

Fertilizer Tank

3шт.

10

87657981

BOLT

.375 X 5.00 Grade 5

12шт.

11

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

12шт.

12

86637940

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

24шт.

13

84490435

FLANGE NUT

24шт.
