(79.103.AA[13]) - ROW UNIT VACUUM HOSE MIDDLE LEFT FOR 36/30

Запчасти Case IH 1265 (79.103.AA[13]) - ROW UNIT VACUUM HOSE MIDDLE LEFT FOR 36/30 (79) - PLANTING

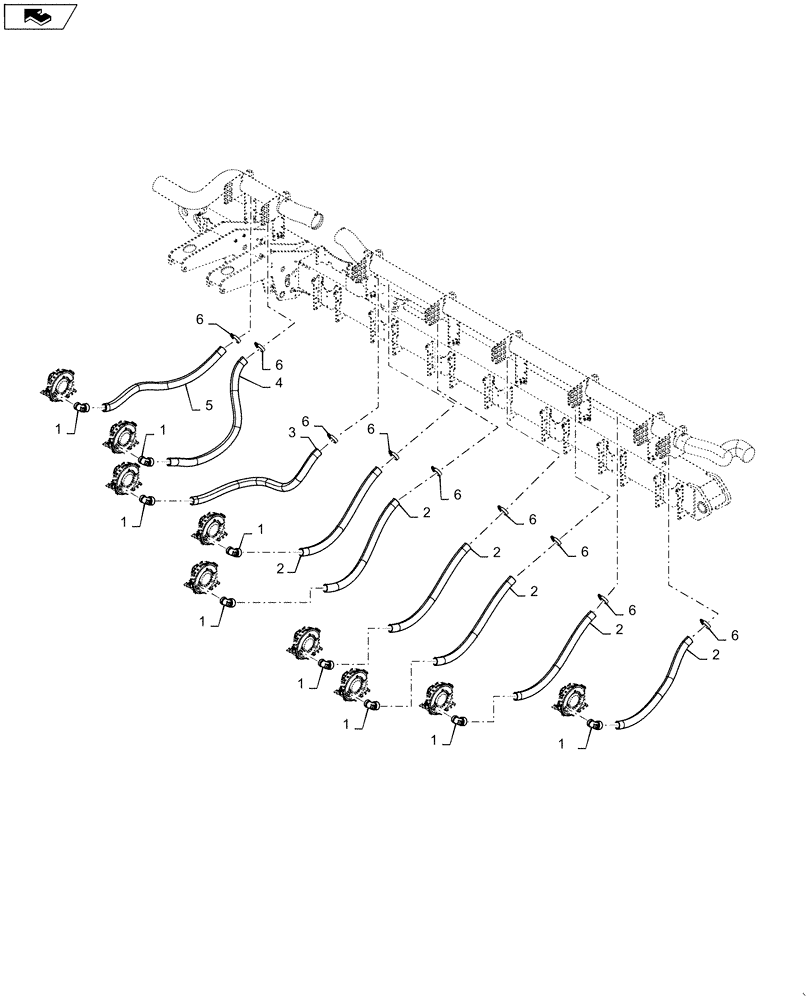

Схема запчастей Case IH 1265 - (79.103.AA[13]) - ROW UNIT VACUUM HOSE MIDDLE LEFT FOR 36/30 (79) - PLANTING
6
6
2
6
4
1
6
1
1
6
2
3
1
2
6
2
home
2
5
1
1
1
1
6
6
2
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84416530

90 ELBOW

50mm

9шт.

2

87501726

HOSE

50 Foot Bulk Roll Cut To 1157mm

6шт.

3

87501726

HOSE

50 Foot Bulk Roll Cut To 1520mm

1шт.

4

87501726

HOSE

50 Foot Bulk Roll Cut To 1307mm

1шт.

5

87501726

HOSE

50 Foot Bulk Roll Cut to 1370mm

1шт.

6

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

9шт.
