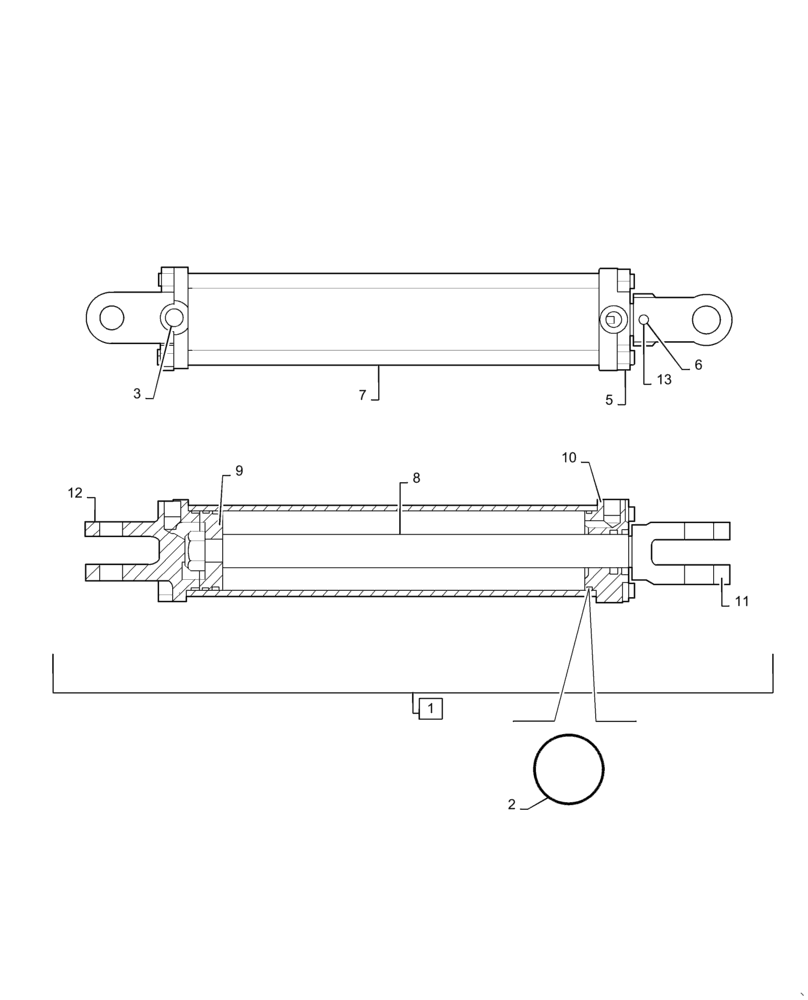

Запчасти Case IH 1265 (35.100.BI[11]) - HYDRAULIC CYLINDER 3.5X16 NITRO (35) - HYDRAULIC SYSTEMS

1

84282604

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3.5X16 NITRO INCL 3 - 13

1шт.

2

84155402

SEAL KIT

1шт.

3

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

4

87314800

LOCK NUT

ALL MTL 1-14 GR C PHC

1шт.

5

25-1110

NUT,5/8"-18, G5

8шт.

6

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

7

87409492

THREADED TIE-ROD

HYD CYLINDER

4шт.

8

84155866

PISTON ROD

1шт.

9

87548069

PISTON

PISTON 3.5 MONARCH PSP

1шт.

10

87409417

HEAD

CYLINDER FRONT 3.5 BORE X 1.5 ROD

1шт.

11

84283952

CLEVIS

1шт.

12

87409430

HEAD

CYLINDER BASE

1шт.

13

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

NYLON SCREW INSERT

1шт.
