(79.904.AI[02]) - PNEUMATIC DOWN PRESSURE COMPRESSOR

Запчасти Case IH 1265 (79.904.AI[02]) - PNEUMATIC DOWN PRESSURE COMPRESSOR (79) - PLANTING

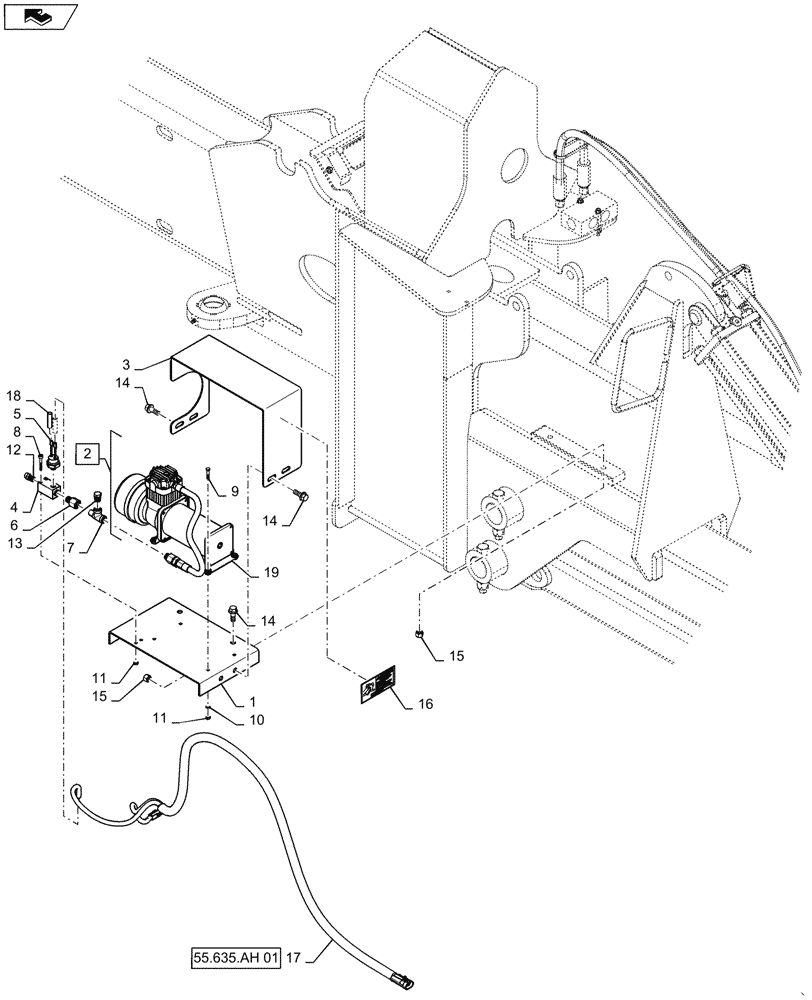

Схема запчастей Case IH 1265 - (79.904.AI[02]) - PNEUMATIC DOWN PRESSURE COMPRESSOR (79) - PLANTING
55.635.ah 01
15
16
9
10
home
3
5
18
19
14
14
6
12
7
2
4
13
11
1
8
15
11
14
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84173863

BASE PLATE

Compressor Mounting

1шт.

2

47454056

AIR COMPRESSOR

Incl Filter And Check Valve

1шт.

2

47454056R

REMAN-COMPRESSOR

1265 36/20, 1265 32/30, 1265 36/30, 1265 36/22, All FRONT FOLD WF TRAIL PLANTER, Incl Filter (12/12-)

1шт.

2

47454056C

CORE-COMPRESSOR

Return Number

1шт.

3

84293045

SHIELD

Compressor Painted

1шт.

4

84143619

MANIFOLD

Air Distribution

1шт.

5

84338925

PRESSURE SWITCH

1шт.

6

87306797

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

1шт.

7

84576084

RUN TEE

1/4F - 1/4 M

1шт.

8

84361277

HEX SOC SCREW

24 X1.50

2шт.

9

84331292

SCREW,Hex, #10 - 24 x 1"

24 X 1.00

4шт.

10

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

4шт.

11

87304

NUT,#10-24

6шт.

12

84256879

FITTING

Male

1шт.

13

47402228

PIPE PLUG

1/4-18

1шт.

14

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

15

87039402

NUT,3/8"-16, GB

6шт.

16

87697284

DECAL

Safety

1шт.

17

84170858

HARNESS

Compressor Planter

1шт.

18

47407042

PROTECTIVE SLEEVE

Heat Shrink

2шт.

19

47454057

AIR FILTER

Compressor

1шт.

20

47454058

AIR FILTER

Ellement Incl in 19

1шт.

21

47459245

SEAL

Filter Incl in 19

1шт.
