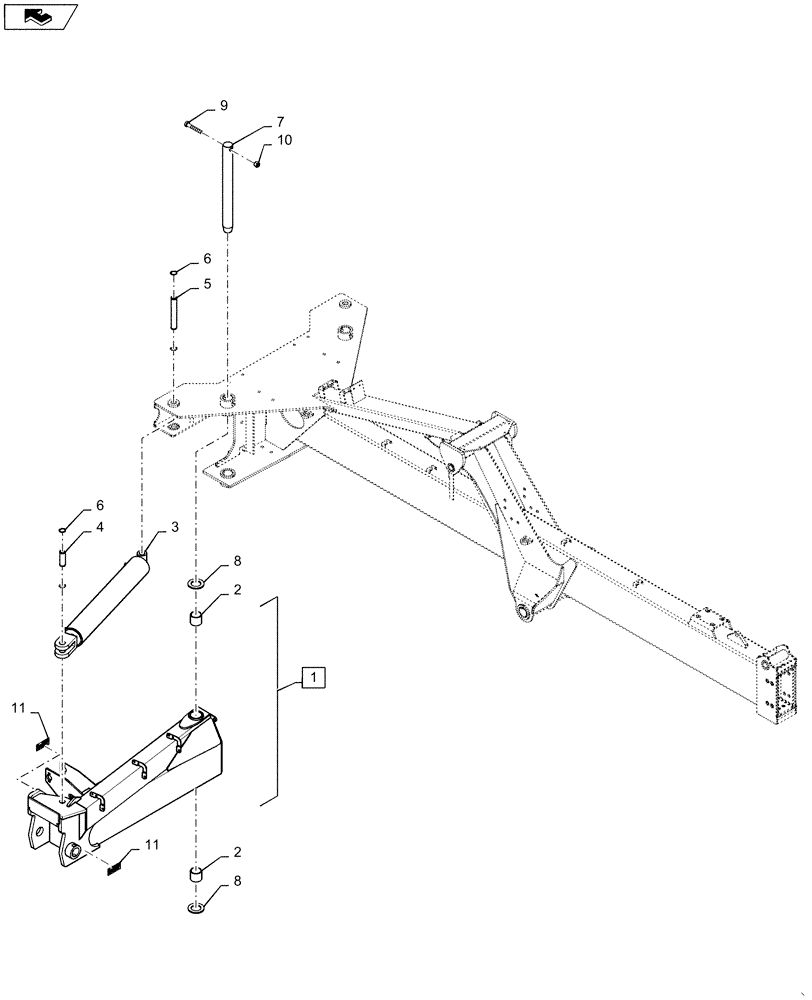

Запчасти Case IH 1265 (39.100.BC[01]) - INNER WING RIGHT HAND (39) - FRAMES AND BALLASTING

1

47388787

PACKAGE

Inner Wing With Decal

1шт.

2

87503180

BUSHING

3.0 X 3.5 X 3

2шт.

3

87753020

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 582.93mm Stroke

6 X 22.95 3000 PSI No Pins

1шт.

4

87728806

PIN

44.45 X 115

1шт.

5

87480615

PIN

44.45 X 300

1шт.

6

86625149

SNAP RING,#175, Ext

4шт.

7

87479022

PIVOT PIN

76.2 X 830 mm

1шт.

8

84178289

WEAR PLATE

Red

2шт.

9

50204

BOLT,Hex, 1" - 8 x 6", Gr 5

1шт.

10

87304132

NUT,1"-8, GC

1шт.

11

87588040

DECAL

Pinch Hazard

2шт.
