(79.103.AA[24]) - ROW UNIT VACUUM HOSE CENTER FOR 36/20

Запчасти Case IH 1265 (79.103.AA[24]) - ROW UNIT VACUUM HOSE CENTER FOR 36/20 (79) - PLANTING

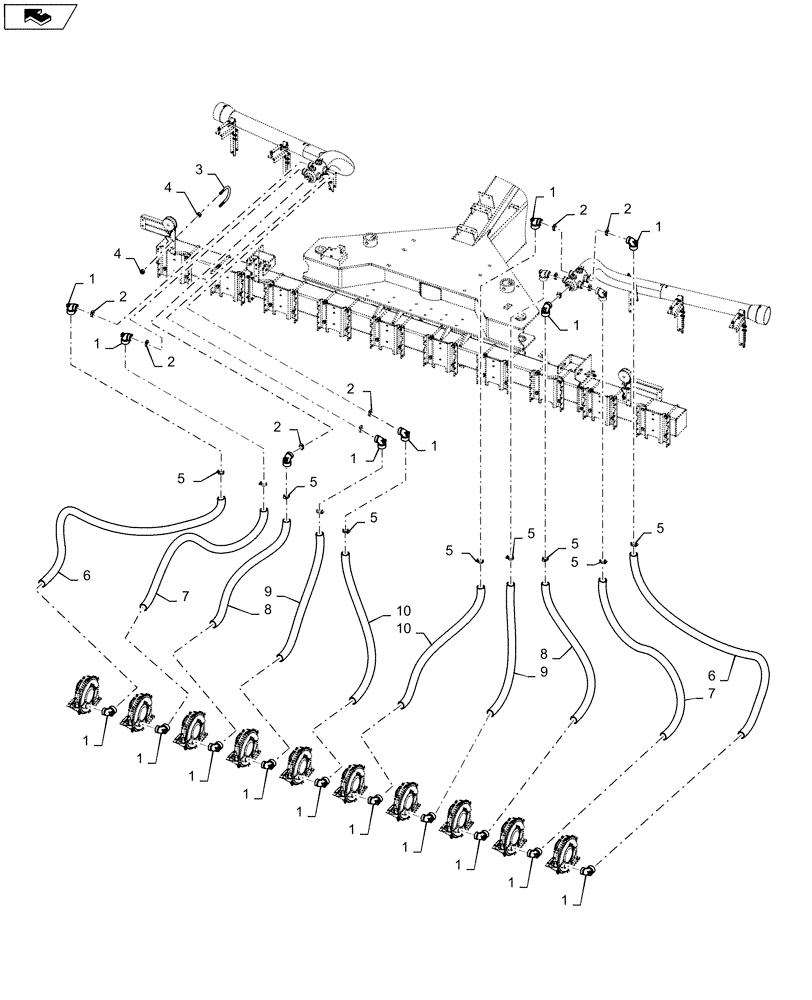

Схема запчастей Case IH 1265 - (79.103.AA[24]) - ROW UNIT VACUUM HOSE CENTER FOR 36/20 (79) - PLANTING
1
1
1
6
8
1
9
5
1
10
3
6
4
2
5
7
5
7
1
1
8
1
1
2
4
1
2
1
1
1
1
2
10
9
1
5
home
1
2
5
5
5
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84416530

90 ELBOW

20шт.

2

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

10шт.

3

84206676

U-BOLT

3/8-16 X 2.5 X 3.5

6шт.

4

9628503

NUT,3/8"-16, G5

24шт.

5

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

10шт.

6

87501726

HOSE

50 Foot Bulk Hose Cut To 2450mm

2шт.

7

87501726

HOSE

50 Foot Bulk Hose Cut To 1835mm

2шт.

8

87501726

HOSE

50 Foot Bulk Hose Cut To 1640mm

2шт.

9

87501726

HOSE

50 Foot Bulk Hose Cut To 1350mm

2шт.

10

87501726

HOSE

50 Foot Bulk Hose Cut To 1370mm

2шт.
