(09-21) - MARKERS, HYDRAULIC MARKER CONNECTIONS, UNIT R

Запчасти Case IH 800 (09-21) - MARKERS, HYDRAULIC MARKER CONNECTIONS, UNIT R (08) - HYDRAULICS

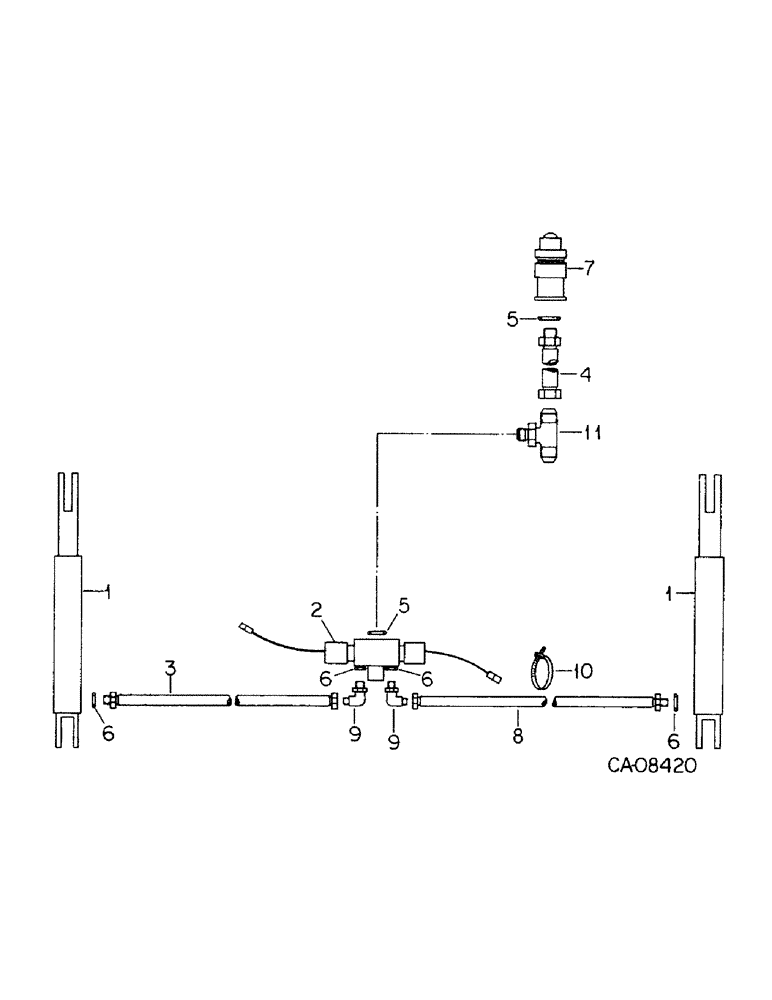

Схема запчастей Case IH 800 - (09-21) - MARKERS, HYDRAULIC MARKER CONNECTIONS, UNIT R (08) - HYDRAULICS
5
1
4
11
10
7
3
6
6
9
6
9
6
5
1
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

145622C91

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 204.7mm Stroke

CYLINDER ASSY, 2 x 8 in. single acting hydraulic, for components see list of parts under details of hyd cylinder

1шт.

22964R1

HEADED PIN,1" x 2 7/16"

PIN, 1 x 2.438 hd type 1

2шт.

22807R1

CLEVIS PIN

PIN, 1 x 3. hd type 1

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

2

149988C92

VALVE

ASSY, row marker, modular controls, replaces 149986C91, optional with 1272632C91, for components see list of parts under details of row marker valve

1шт.

2

1272632C91

VALVE

ASSY, row marker, waterman hydraulics, optional with 149988C92, for components see list of parts under details of row marker valve

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

129759C2

HYDRAULIC HOSE

HOSE, 3/8 x 180 in. hydraulic, replaces 1261399C1

1шт.

4

116098C91

HOSE

1/2 x 61 in. hydraulic, replaces 1254219C1

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

6

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

4шт.

7

544787R91

COUPLING, BREAK AWAY

COUPLER, quick attachable male, IH

1шт.

7

1272399C2

QUICK MALE COUPLING

COUPLER, quick attachable male, ISO

1шт.

8

129782C2

HYDRAULIC HOSE

HOSE, 3/8 x 165 in. hydraulic, replaces 1254122C1

1шт.

9

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

2шт.

10

306132C1

CABLE TIE,14.5" L

STRAP, 14 in. tie

6шт.

11

9411119

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br

5/8 C-Z hyd fld tube adj

1шт.

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel, for hoses ref. 3 & 8

2шт.
