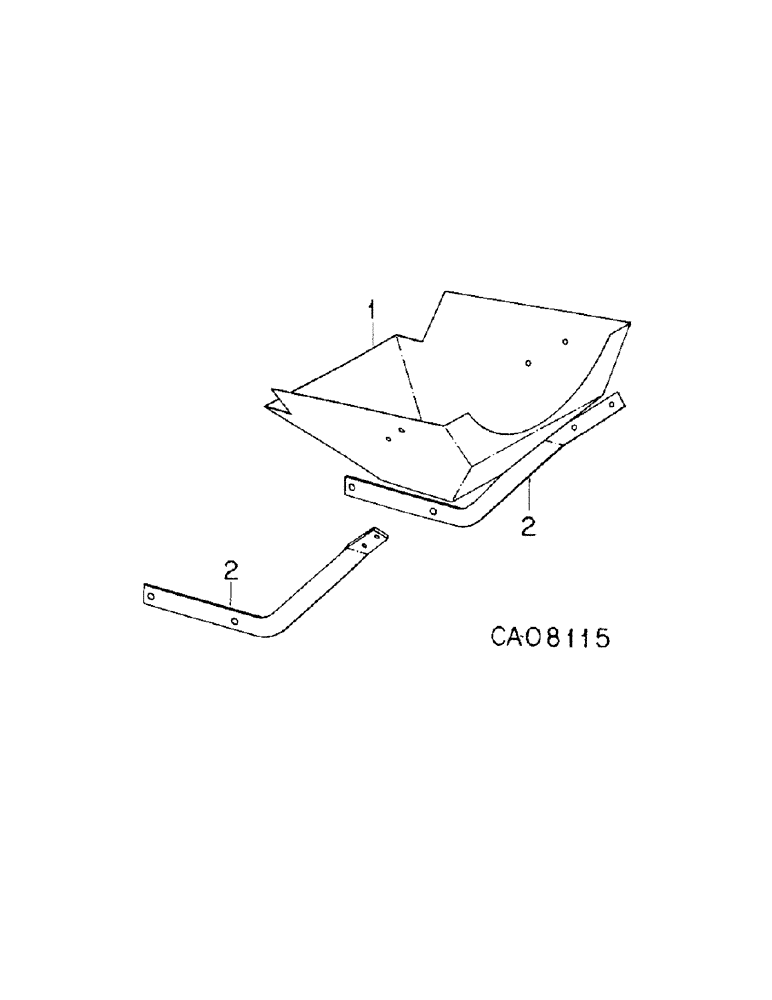

Запчасти Case IH 800 (07-18[1]) - SEED HANDLING, SEED FUNNEL AND DRUM GUARD ATTACHMENT UNITS J, R, W, X AND Y ONE PER MODULE (09) - CHASSIS/ATTACHMENTS

1

1264163C1

HOPPER

FUNNEL ASSY

1шт.

2

1264161C1

SUPPORT

ARM, funnel support LH

1шт.

2

1264162C1

SUPPORT

ARM, funnel support RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

4шт.
