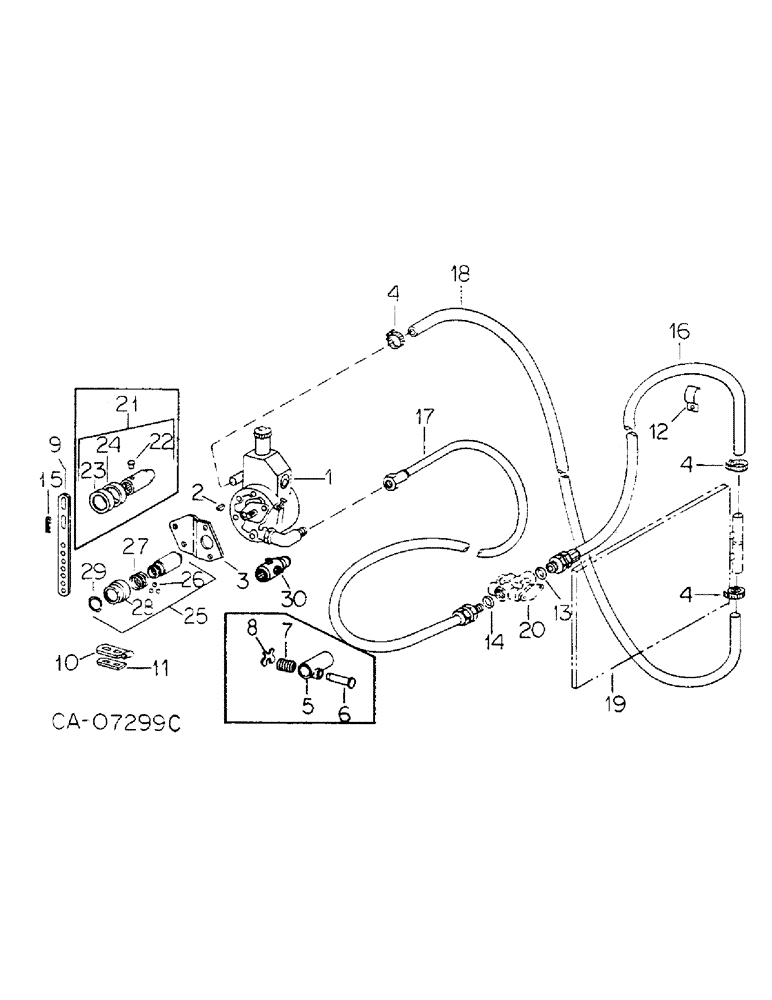

Запчасти Case IH 800 (07-21) - SEED HANDLING, HYDRAULIC PUMP AND RELATED PARTS UNITS A, B, C, D, H, S, U, Z (09) - CHASSIS/ATTACHMENTS

1

149368C91

PUMP

W/PRODUCT GRAPHIC, 145167C1, hyd, 8 GPM, for components see list of parts under details of 1000 RPM hyd pump

1шт.

1

1986017C1R

REMAN-HYD PUMP

Reman for New P/N 149368C91

1шт.

1

1986017C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

145167C1

DECAL

PRODUCT GRAPHIC, warning

1шт.

2

431787

WOODRUFF KEY,#61, 3/16" x 5/8", HT

KEY, 3/16 x 5/8 SAE 61 Woodruff

1шт.

3

56780C1

PLATE

pump mounting

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

3шт.

5

56785C92

COUPLING

ASSY, pressed, order coupling assy 1279354C91, serial no. 10100 and below

1шт.

6

631976R91

PIN

ASSY, lock, serial no. 10100 and below

1шт.

7

455347R1

VALVE SPRING

SPRING, lock pin, serial no. 10100 and below

1шт.

8

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

lock pin X, serial no. 10100 and below

1шт.

9

56774C1

BRACKET

hyd pump adjusting

1шт.

165248

PIN, 7/16 x 1.250 pln hd type 1

2шт.

120395

WASHER

.469 x .922 x .051

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

10

1254128C1

STRAP

ASSY

1шт.

22092R1

PIN

5/8 x 2.750 hd type 1

1шт.

11

56776C1

BAR

STRAP

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

2шт.

120396

WASHER

.531 x 1.062 x .074

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

180141

SPRING,Hex, 7/16" - 14 x 5/8", Gr 5

BOLT, 7/16 x 5/8 type 5

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

12

Not used this application

1шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

15

520175R1

CLIP

PIN, 3/16 quick attachable cotter

1шт.

16

149191C1

HOSE,12.70 mm ID x 711.20, SAE 30R2 TYPE 3 OR 100R6

1/2 ID x 28 in. top return, hyd motor to oil cooler, serial no. 19900 and below

1шт.

16

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

Top Return, Hyd Motor to Oil Cooler, Serial No. 19901 and Above 12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

1шт.

17

137082C1

HOSE,0.50" ID x 200.00"

ASSY, 1/2 ID x 200 in. pressure, hyd pump to hyd motor, unit A thru D and S

1шт.

17

58146C1

HOSE

ASSY, 1/2 ID x 100 in. pressure, hyd pump to hyd motor, units H, U, V and Z

1шт.

18

137081C1

HYDRAULIC HOSE,12.70 mm ID x 5636.00 mm, SAE 100R6

Return, Oil Cooler to Hydraulic Pump, Unit A Through D and S 12.70 mm ID x 5636.00 mm, SAE 100R6

1шт.

18

59773C1

HYDRAULIC HOSE,12.70 mm ID x 3048.00 mm ID, SAE 100R6, SAE J517

- Return, Oil cooler to hyd pump, Units H, U, V and Z 12.70 mm ID x 3048.00 mm ID, SAE 100R6, SAE J517

1шт.

19

OIL COOLER, refer to hydraulic blower drive

1шт.

20

MOTOR ASSY, hydraulic fan drive, refer to hydraulic blower drive

1шт.

21

149503C92

COUPLING

W/PRODUCT GRAPHIC, 1268289C1 hydraulic pump, twist type, order coupling assy 1279354C91, serial no., Serial Range: 10101-14500

1шт.

1268289C1

PRODUCT GRAPHIC

caution

1шт.

22

1261261C1

PIN

part of coupling, 149503C92

1шт.

23

1261262C1

CAP WASHER

COVER, collar, part of coupling, 149503C92

1шт.

24

1261263C1

COLLAR

part of coupling, 149503C92

1шт.

383878R1

SNAP RING,1.25, Int, #125

RING, 1.388 int ret

1шт.

25

1279354C91

COUPLING

ASSY, hydraulic pump, single modules, push pull type, replaces 56785C92 and 149503C92

1шт.

26

21505R1

BALL,1/2" Dia, Stainless

1/2 grade ST100 metal, part of coupling, 1279354C91

3шт.

27

1279356C1

SPRING

part of coupling, 1279354C91

1шт.

28

1279357C1

COLLAR

part of couling, 1279354C91

1шт.

29

279762R1

SNAP RING,#168, Ext

RING, 1.560 ext ret, part of coupling, 1279354C91

1шт.

30

1277793C91

ADAPTER

ASSY, hydraulic pump, 1-3/4 in. spline, includes two nuts, 19258R1 and two set screws, 540814R1

1шт.

19258R1

LOCK NUT,1/2"-20, GB

NUT, 1/2-NF p/t lock type 5

2шт.

540814R1

SET SCREW,Hex Soc, 1/2"-20 x 1 1/4"

SCREW, 1/2 x 5/16 znc c/pt hdl/hs set

2шт.
