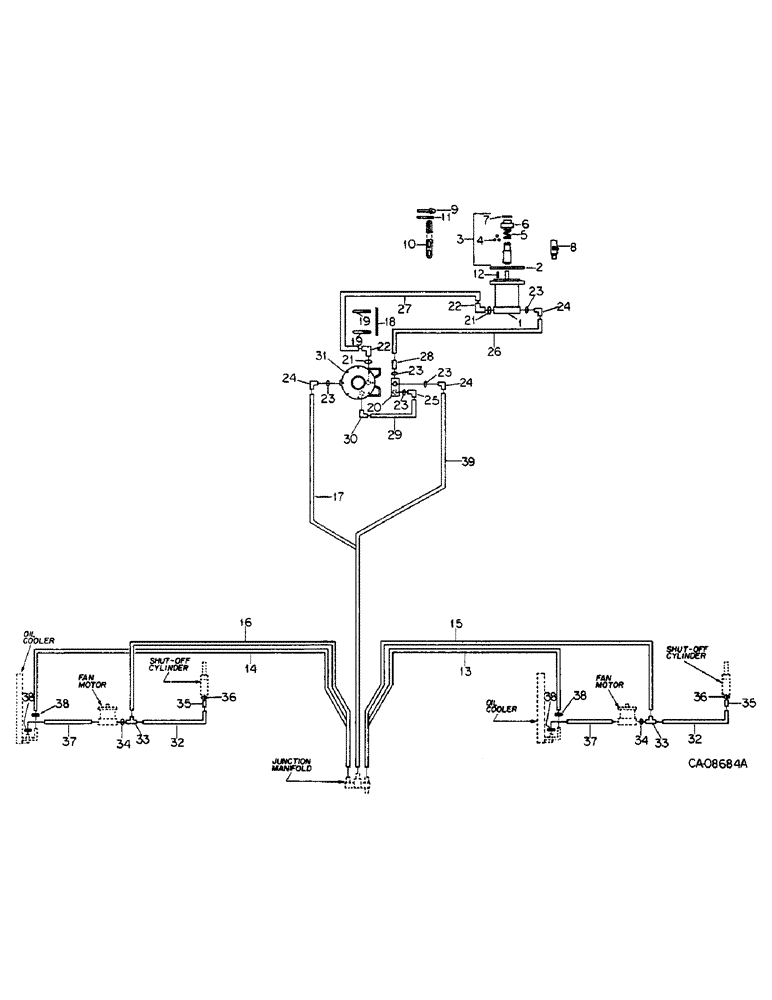

Запчасти Case IH 800 (07-28) - SEED HANDLING, HYDRAULIC PUMP AND RELATED PARTS, UNITS W, X AND Y FOR 1000 RPM TAKE-OFF UNIT (09) - CHASSIS/ATTACHMENTS

1

142482C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic, for components see list of parts under details of hydraulic pump, or

1шт.

1

149729C91

PUMP

ASSY, hydraulic, only serviceable items are

1шт.

Q53

KEY,1/4" Sq x 1", Par

1шт.

1263293C1

PACKAGE, REPAIR

KIT, seal repair

1шт.

60580D

WASHER

1шт.

120371

NUT,1/2"-20, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4 C-Z hyd fld short swivel

1шт.

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, 1 C-Z hyd fld short swivel

1шт.

2

56773C1

PLATE

pump mounting

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

3

1279355C91

COUPLING

ASSY, hydraulic pump, dual modules, push pull type

1шт.

4

21505R1

BALL,1/2" Dia, Stainless

1/2 grade ST100 metal

3шт.

5

1279356C1

SPRING

1шт.

6

1279357C1

COLLAR

1шт.

7

279762R1

SNAP RING,#168, Ext

RING, 1.560 ext ret

1шт.

8

1277794C91

ADAPTER

ASSY, hydraulic pump, 1-3/4 in. spline, includes two nuts, 19258R1 and two set screws, 540814R1

1шт.

19258R1

LOCK NUT,1/2"-20, GB

NUT, 1/2-NF p/t lock type 5

2шт.

540814R1

SET SCREW,Hex Soc, 1/2"-20 x 1 1/4"

SCREW, 1/2 x 5/16 znc c/pt hld/hs set

2шт.

9

1254128C1

STRAP

ASSY

1шт.

22092R1

PIN

5/8 x 2.750 hd type 1

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

10

56774C1

BRACKET

adjusting

1шт.

165248

PIN, 7/16 x 1.250 pln hd type 1

2шт.

NLS

NO LONGER SERVICED

.469 x .922 x .051

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

11

56776C1

BAR

STRAP

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

2шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

2шт.

12

177192C1

KEY

drive shaft

1шт.

13

1254545C1

HOSE

1/2 x 177.17 in. return RH

1шт.

14

1254547C1

HOSE

1/2 x 228.35 in. return LH

1шт.

15

1254544C2

HOSE

1/2 x 171.26 in. pressure RH

1шт.

16

1254546C2

HOSE

1/2 x 206.69 in. pressure LH

1шт.

17

1254548C1

HYDRAULIC HOSE

HOSE, 3/4 x 120.87 in. hydraulic drive return

1шт.

18

149428C2

BAR

tank mounting, plate

1шт.

19

542404R1

BOLT,U, 5/8" - 11 x 8.12"

U-BOLT, 5/8 in.

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

20

127743C91

VALVE

ASSY, flow control and relief, for components see list of parts under details of flow control and relief valve

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

21

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

2шт.

22

9410981

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1 C-Z hyd fld adj 90D

2шт.

23

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

5шт.

24

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

3/4 C-Z hyd fld adj 90D

3шт.

25

633460R91

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

C-Z hyd fld adj 3/4 to 5/8 90D

1шт.

26

58940C1

HOSE,19.05mm ID x 1219.2mm L

- Pressure - Replaces 141246C1 0.75" ID x 48.00"

1шт.

27

58159C2

HOSE,31.75mm ID x 1371.6mm L

- Return 1.25" ID x 54.00"

1шт.

28

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4 C-Z hyd fld short swivel

1шт.

29

149568C1

HOSE

3/4 x 34 in. by-pass

1шт.

30

24983R1

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/8"-18, NPTF

C-Z hyd fld 5/8 to 3/8 90D

1шт.

31

156395C91

RESERVOIR

ASSY, 3 gallon hydraulic oil, for components see list of parts under details of hydraulic oil reservoir

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

32

1261449C2

HOSE

3/8 x 60 in., seed shut-off

2шт.

33

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

1/2 C-Z hyd fld tube adj

2шт.

34

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.

35

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, C-Z hyd fld 1/2 to 3/8 sht

2шт.

36

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

37

149191C1

HOSE,12.70 mm ID x 711.20, SAE 30R2 TYPE 3 OR 100R6

1/2 x 28 in. top return, serial no. 19900 and below

2шт.

37

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

Top Return, Serial No. 19901 and Above 12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

2шт.

38

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

4шт.

39

1286447C1

HYDRAULIC HOSE

HOSE, 3/4 x 120.87 in. hydraulic drive pressure

1шт.
