(07-33[1]) - SEED HANDLING, 1000 RPM PTO UNITS E, J, R, W, X AND Y

Запчасти Case IH 800 (07-33[1]) - SEED HANDLING, 1000 RPM PTO UNITS E, J, R, W, X AND Y (09) - CHASSIS/ATTACHMENTS

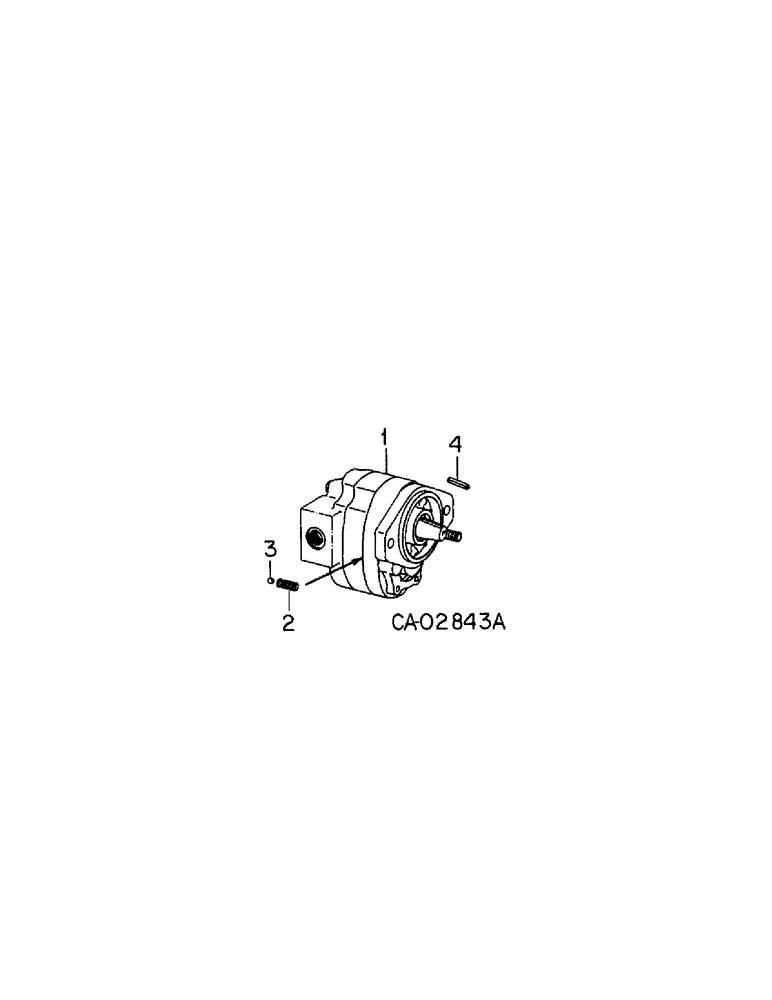

Схема запчастей Case IH 800 - (07-33[1]) - SEED HANDLING, 1000 RPM PTO UNITS E, J, R, W, X AND Y (09) - CHASSIS/ATTACHMENTS
2
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

142482C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic

1шт.

2

381230R1

SPRING

check ball

1шт.

3

17013R1

BALL,13/32" Dia

1шт.

4

177192C1

KEY

drive shaft

1шт.

55295C91

SEAL KIT

KIT, seal repair, consists of diaphragm seal (NSS)

1шт.

381230R1

SPRING

back-up gasket (NSS), protector gasket (NSS), diaphragm (NSS), seal (NSS), thrust plate (NSS)

1шт.

17013R1

BALL,13/32" Dia

Instructions (NSS) 13/32" Dia

1шт.
