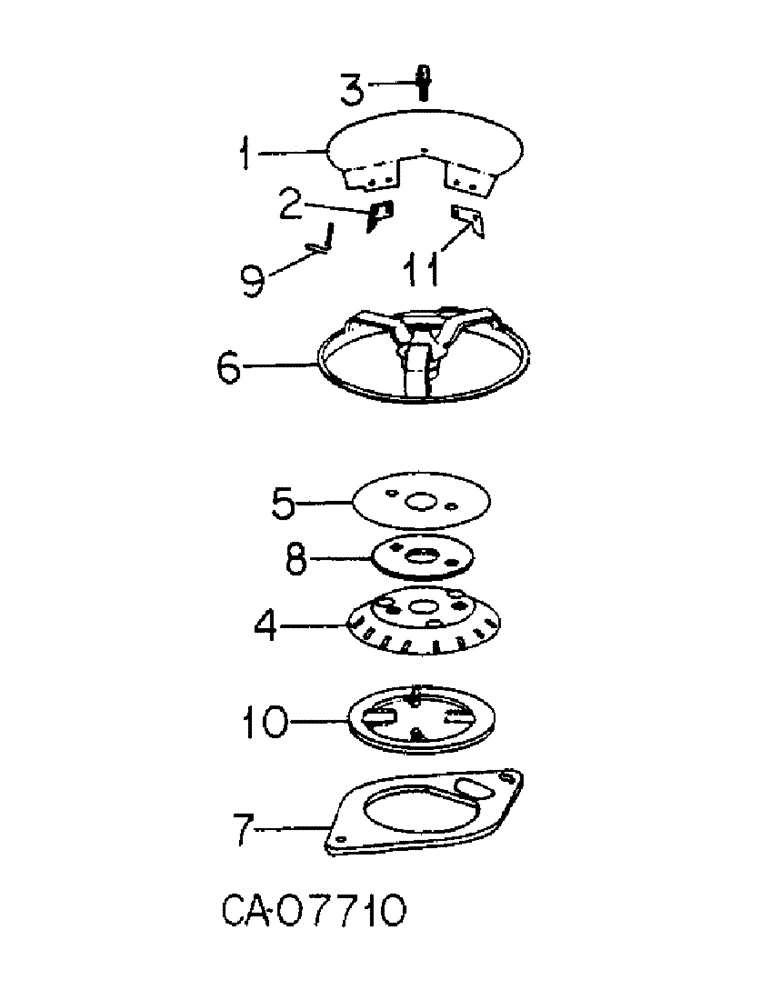

Запчасти Case IH 800 (07-38) - SEED HANDLING, PEANUT PLANTING EQUIP., ROTARY CONE BOTTOM, UNITS F, G, K, L, M, N, P, Q, T, AA & AB (09) - CHASSIS/ATTACHMENTS

1

487064R2

BAFFLE

ASSY, peanut

1шт.

2

487066R1

REINFORCEMENT

REINFORCMENT, peanut cut-off

1шт.

436695

SCREW,Slotted Pan Hd, #8-32 x 1/2"

no. 8 x 1/2 znp p/hds mach

2шт.

3

377363R1

THUMB SCREW,1/4" x 3/4"

thumb

1шт.

4

487067R2

LARGE PLATE

PLATE, peanut seed

1шт.

5

487068R2

LARGE PLATE

PLATE ASSY, peanut baffle

1шт.

5

490621R1

PLATE

agitator

1шт.

6

134342C1

BOTTOM

rotary cone hopper

1шт.

7

147215C1

LARGE PLATE

PLATE, hopper bottom

1шт.

8

58619C1

SPACER

baffle plate

1шт.

9

490622R1

SPRING

seed cut-off

1шт.

436695

SCREW,Slotted Pan Hd, #8-32 x 1/2"

no. 8 x 1/2 znp p/hds mach

1шт.

10

113161C2

PLATE

filler peanut seed

1шт.

11

490620R1

GUIDE

GATE, rotary cone bottom

1шт.

436695

SCREW,Slotted Pan Hd, #8-32 x 1/2"

no. 8 x 1/2 znp p/hds mach

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

120622

NUT,#8-32

2шт.
