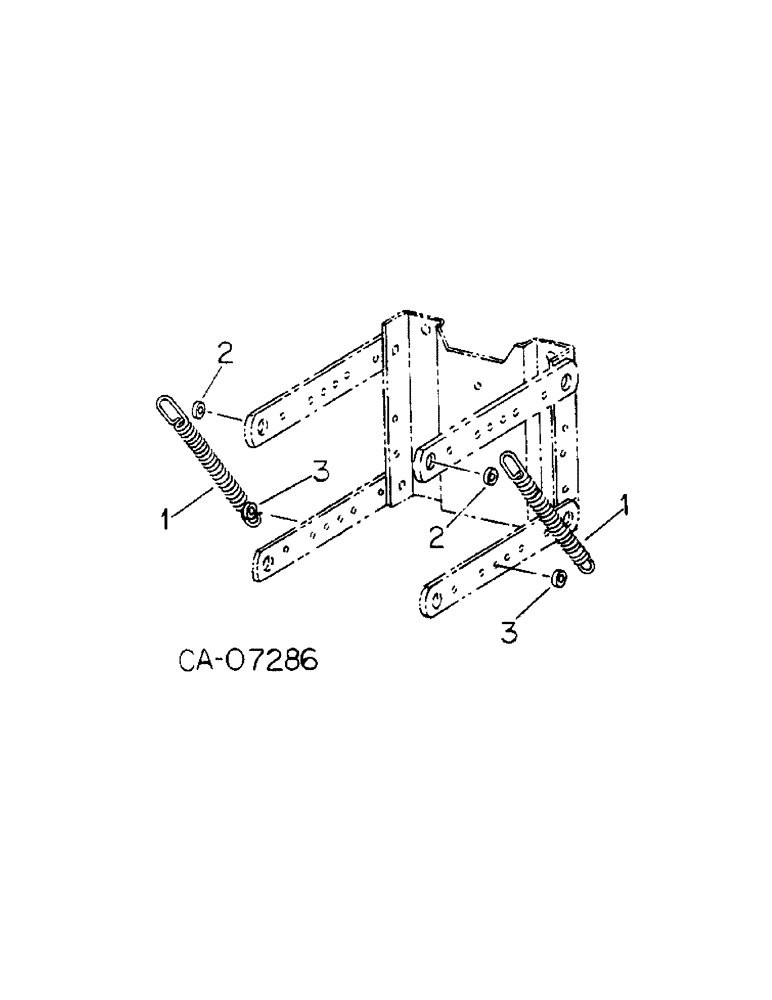

Запчасти Case IH 800 (07-41) - SEED HANDLING, PRESSURE SPRING ATTACHMENT, UNITS F, G, K, L, M, N, P, Q, T, AA, AND AB, ONE PER ROW (09) - CHASSIS/ATTACHMENTS

1

149351C1

SPRING

pressure

2шт.

1279075C1

CARRIAGE BOLT,Flat Hd, Sq Nk, 1/2" - 13 x 2", Type 5

BOLT, 1/2 x 2 flat-hd crg

2шт.

20601R1

WASHER

.531 x 1.250 x .105

2шт.

144844C1

NUT

1/2 parallel link lock

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

20803R1

WASHER

.406 x 1.000 x .105

4шт.

2

149352C1

BUSHING

pressure spring

2шт.

3

149353C1

BUSHING

spring

2шт.
